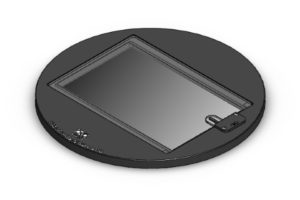

This ITO glass plate fits in the circular 180 mm opening of the stereo microscope and creates a flat warm surface.   It requires H401-T-CONTROLLER or H401-T-PENNY.   Features T range: ambient to 60°C T sensor accuracy: ±0.1°C T accuracy on specimen: ±0.3°C, after calibration, if room temperature remains within ±1°C Aluminium frame for superior […]

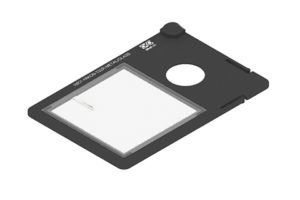

H601-NIKON-TS2R-METAL/GLASS is a dual channel plate featuring Indium Tin Oxide (ITO) coated glass cased in a heated aluminium frame.   It provides a warm and optically transparent surface perfectly flush with the microscope stage with the best possible temperature uniformity and accuracy, achieved by controlling the temperature of both the glass and the metal frame. […]

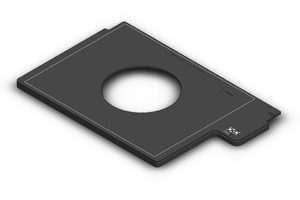

The Stage Heater covers the entire NIKON-TI-SR stage and provides a flat, smooth surface at controlled temperature. It clamps on the stage and it is fixed in place by set crews positioned on the vertical sides of the plate. The Stage Heater leaves the observation hole open.   It is possible and recommendable to use […]

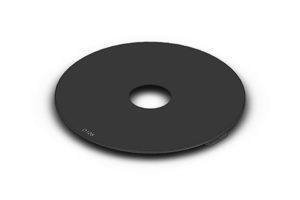

The Metal T Plate creates a warm flat temperature controlled surface perfectly flush with the microscope stage and features a circular observation opening in the center. It employs a surface sensor to ensure the highest accuracy on temperature reading.   It requires H401-T-CONTROLLER or H401-T-PENNY.   Features Flush with for Nikon stage T/Ti-SR with circular […]

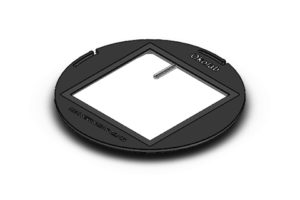

The Glass T Plate creates a warm and optically transparent surface perfectly flush with the microscope stage. It employs Indium Tin Oxide (ITO) coating to obtain uniform heating throughout the glass surface and a surface sensor to ensure the highest accuracy on temperature reading.   H601-NIKON-TI-SR-GLASS features anti-scratch, anti-fingerprint, chemically strengthened Dragontrail glass cased in […]

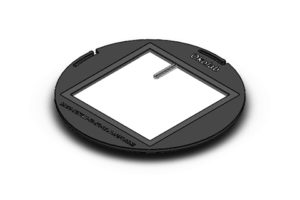

H601-NIKON-TI-SR-GLASS/FRAME is a dual channel plate featuring Indium Tin Oxide (ITO) coated glass cased in a heated aluminium frame.   It provides a warm and optically transparent surface perfectly flush with the microscope stage with the best possible temperature uniformity and accuracy, achieved by controlling the temperature of both the glass and the metal frame. […]

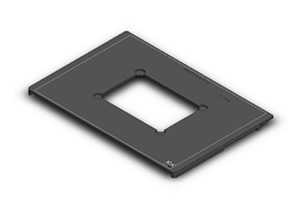

The Stage Heater covers the entire TC-S-SR, TC-S-SRF and TS2-S-SM Nikon stages and provides a flat, smooth surface at controlled temperature. It clamps on the stage and it is fixed in place by set crews positioned on the vertical sides of the plate. The Stage Heater leaves the observation hole open.   It is possible […]

Small, flexible, calibrated, and immersible thermocouple. Ideal for measurements in liquids, such as culture media in a dish. T1-MODULE has a negligible diameter (0.13mm) and it can be directly introduced into an incubator, even if it lacks a dedicated temperature measurement port. Features: Sensor: K-type thermocouple Measurement range: 0-60°C Accuracy: ±0.1°C from 20 to 50°C

The CO2-O2-MODULE (included automatically with purchase of LEO 2.0) measures the CO2 and O2 % concentration in the incubator’s sampled gas. The measured values are temperature- and pressure-compensated. CO2-O2-MODULE’s lifetime is 5 years.  Okolab recommends once-yearly calibration. No need to part ways with your meter to keep the sensor calibrated: CO2-O2-MODULE can be easily extracted […]

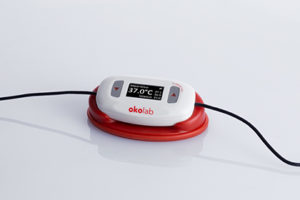

H401-T-PENNY is a compact single-channel Temperature Controller compatible with OKOLAB single-channel metal and glass heated plates and heated objective collars.   H401-T-PENNY combines performance and simplicity at an affordable price.   Features Temperature range: from ambient to 60°C Set point resolution: 0.1°C One-Point Temperature Calibration and Adjustment Maximum Output: 60 W Dim.: 84x45x20 mm Weight: […]

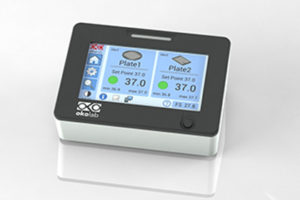

2-Channel Temperature Controller with 4.3” touch screen interface compatible with all H401 heating devices. One controller can control independently up to two items.   External temperature sensor (included) and self calibration routines allows easy calibration of the heating devices for the highest accuracy on sample temperature.   On board data logging and download procedures to […]

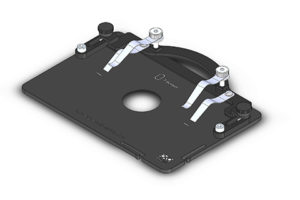

The Metal T Plate creates a warm flat temperature controlled surface perfectly flush with the microscope stage and features a circular observation opening in the center. It employs a surface sensor to ensure the highest accuracy on temperature reading.   It requires H401-T-CONTROLLER or H401-T-PENNY.   Features Flush with Nikon stages TC-S-SR, TC-S-SRF and TS2-S-SM […]

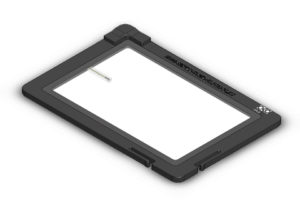

The Glass T Plate creates a warm and optically transparent surface perfectly flush with the microscope stage. It employs Indium Tin Oxide (ITO) coating to obtain uniform heating throughout the glass surface and a surface sensor to ensure the highest accuracy on temperature reading.   H601-NIKON-TS2R-GLASS features anti-scratch, anti-fingerprint, chemically strengthened Dragontrail glass cased in […]

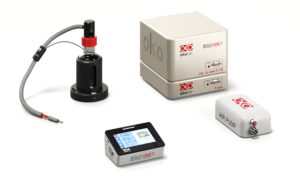

Bold Line 3 – Temperature, Humidity and CO2/O2 controller. The bundle includes: temperature controller for BL3 electric chambers active humidity CO2 and O2 controller air pump user touch screen interface   The temperature module: Allows to work in chamber or in specimen feedback mode and to continuously monitor room temperature. T range: 3°C above ambient […]

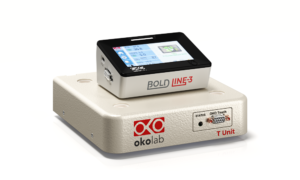

BL3 – Temperature Controller.   The bundle includes: temperature controller for BL3 electric chambers user interface   The temperature module: Allows to work in chamber or in specimen feedback mode and to continuously monitor room temperature. T range: 3°C above ambient – 60°C. Specimen Temperature accuracy: ± 0.1°C in specimen feedback mode, ± 0.3°C in […]

BL3 – Gas chamber for Leica Super Z Galvo Stage The chamber fits on the XY stage and covers the Super Z galvo stage (SP5/SP8). It host MW plates without addition of any insert. A high precision temperature sensor is embedded the chamber to provide the best temperature conterol accuracy on the sample. Perfusion holes:# […]

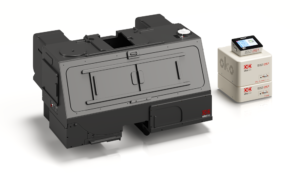

BL3 Microscope Black Enclosure — Temperature, Humidity, CO₂ and O₂ controller. The bundle includes: BL3 black microscope enclosure temperature controller CO₂ and O₂ module built-in vibration-free humidifying module user interface   The enclosure and temperature module: Controls temperature in a large volume around the microscope. Two ductless heaters attached to the back of the enclosure […]

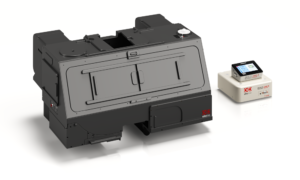

BL3 Microscope Black Enclosure with Temperature controller. The bundle includes: BL3 black microscope enclosure temperature controller built-in vibration-free humidifying module user interface   The enclosure and temperature module: Controls temperature in a large volume around the microscope. Two ductless heaters attached to the back of the enclosure provide smooth warm air recirculation, ensuring excellent sample […]

BL3 – Gas chamber for stages with k-frame insert (160x110mm) – Sliding lid   Compatible with the following XY stages: Marzhauser (all models), Ludl (all models), ASI (all models, including z-piezo), Prior H107 and 117, Leica (k-frame), Zeiss (k-frame); Olympus (k-frame).   The chamber can host MW plates without addition of any insert. To host […]

Bold Line 3 – Temperature, Humidity and CO2/O2 controller. The bundle includes: temperature controller for BL3 electric chambers CO2 and O2 module active humidity air pump user touch screen interface   The temperature module: Allows to work in chamber or in specimen feedback mode and to continuously monitor room temperature. T range: 3°C above ambient […]

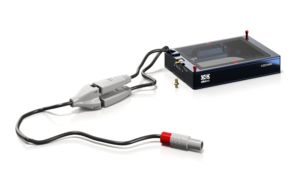

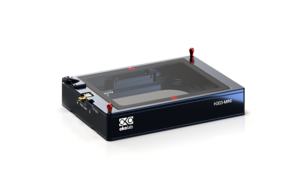

BL3 – MINI – SINGLE HOLDER- Electrically heated chamber. The chamber fits in any MW plate holder. It is uniformly heated by means of embedded electric resistances and is covered with a temperature controlled conductive glass lid. Magnets allow easy interchange of specimen holders. It requires at least one specimen holder. Perfusion holes: #4, 2.5 […]

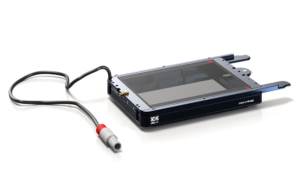

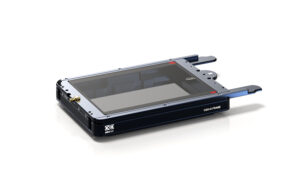

BL3 – Electrically heated chamber for stages with k-frame insert (160x110mm) – wireless sliding lid. Compatible with the following XY stages: Marzhauser (all models), Ludl (all models), ASI (all models, including z-piezo) Prior H107 and 117, Leica (k-frame), Zeiss (k-frame), Olympus (k-frame). The chamber is uniformly heated by means of embedded electric resistances and is […]

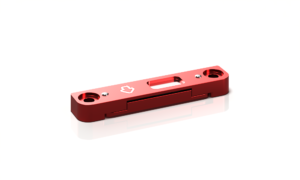

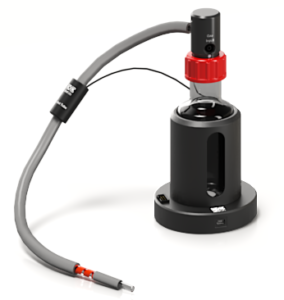

In chamber CO2 and Humidity sensor: By bringing feedback inside the chamber, the BL3 ‘sees’ what no other live cell chamber today can, ensuring accurate and stable conditions right from the start of your experiment, right where your experiment is happening. It provides feedback from the inside of the Okolab BL3 chambers. The sensor can […]

Bold Line 3 – Temperature, Humidity and CO2 controller.   The bundle includes: temperature controller for BL3 electric chambers CO2 module active humidity air pump user interface   The temperature module:   Allows to work in chamber or in specimen feedback mode and to continuously monitor room temperature. T range: 3°C above ambient – 60°C. Specimen […]
