Digital Gas Controllers
Add CO2, hypoxia, or both to any large-volume cell culture incubator.
Digital gas controllers add CO2 and/or hypoxia functionality to your cell culture incubator, or to any semi-sealed large volume from 10 to 200 liters.
They work by infusing pure CO2 and/or N2 into the volume. The internal gas is periodically sampled and measured in the controller to ensure a high accuracy. Controllers feature a built-in gas sensor and suction pump, and should be equipped with a dryer accessory if the atmosphere inside the large volume is humid.
Okolab digital controllers are unique solutions that allow you to:
- Restore high-accuracy gas functionality to older benchtop incubators
- Upgrade existing CO2-only benchtop incubators to add hypoxia functionality
- Add gas control to large-volume custom projects
Features
- Suitable for semi-sealed volumes ranging from 10 to 200 liters, equipped with ports for gas input and sampling tubes
- Set Point Resolution: 0.1%; Repeatability: better than 0.1
- CO2 sensor: Non-Dispersive InfraRed (NDIR) dual wave length detector – 10 year lifetime
- O2 sensor: Optical sensor – 5 year lifetime
- Sensor calibration can be performed using external meter such as LEO 2.0 or certified calibration gas
- Built-in pump provides suction, for performance of periodic gas concentration measurements
- High efficiency membrane-based dryer (attached magnetically to the outside of the incubator) dehumidifies the sampled gas before it reaches the sensor – this accessory is only needed if gas inside the controlled volume is humid)

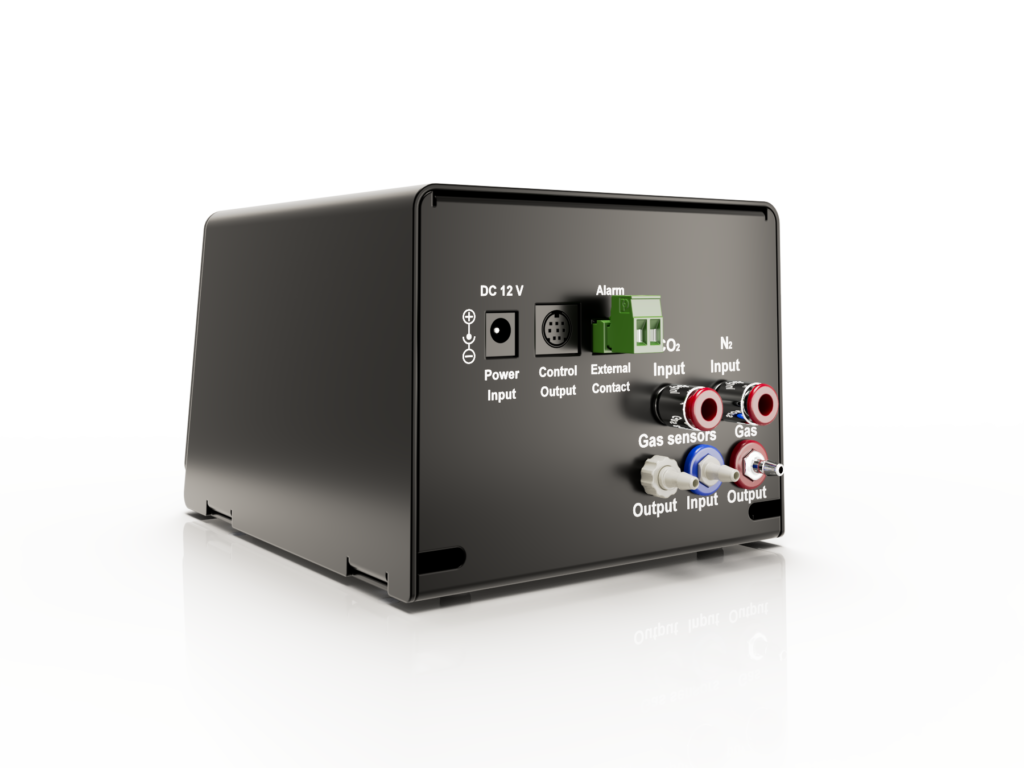

- Alarm Buzzer and External Alarm Connector
- RS232 and Mini USB ports for data logging through Okolab DATA LOG software or any third party software via DLL
Details and Specifications
CO2 range
O2 range
Accuracy
Input gasses

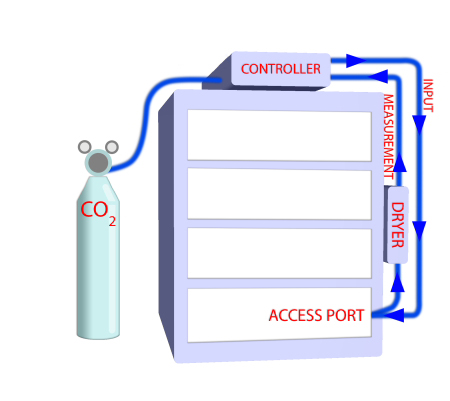

CO2-CONTROLLER
0-20%
n/a
± 0.1%
CO2

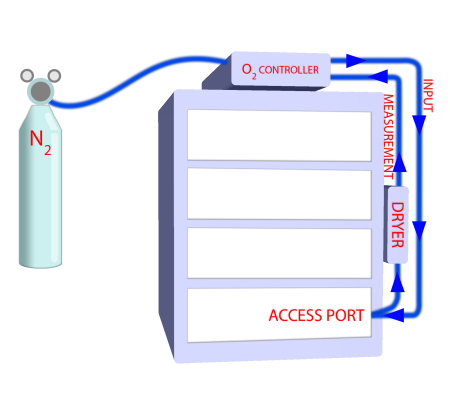

O2-CONTROLLER
n/a
1-20%
± 0.1%
N2

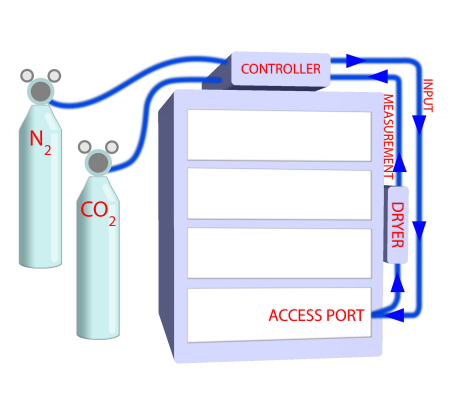

CO2-O2-CONTROLLER
0-20%
1-20%
± 0.1%
CO2, N2
Every setup is unique, so is your Okolab solution.
Request a personalized quote and get expert guidance on the ideal configuration.
