ICSI ENCLOSURE

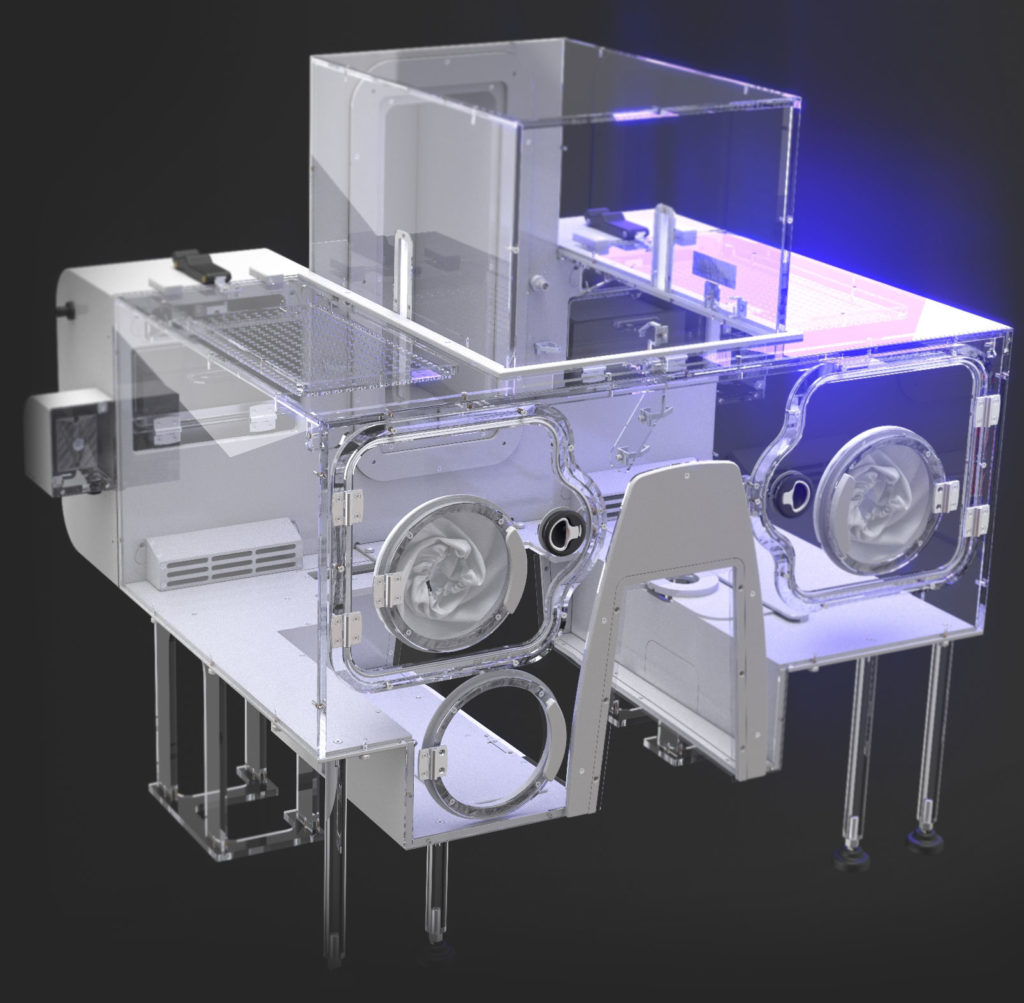

The ICSI Temperature and CO2 enclosure maintains a stable and uniform temperature and CO2 concentration all around the ICSI workstation.

The Okolab ICSI-ENCLOSURE maintains a stable and uniform temperature and CO2 – O2 concentrations all around the ICSI workstation.

CO2 is controlled by gently infusing CO2 into the enclosure and by measuring the gas composition with use of NDIR sensor, by sampling gas from the enclosure.

It is the ideal solution for IVF labs and embryologists who wish to perform the ICSI process under true physiological condition in a fully controlled environment.

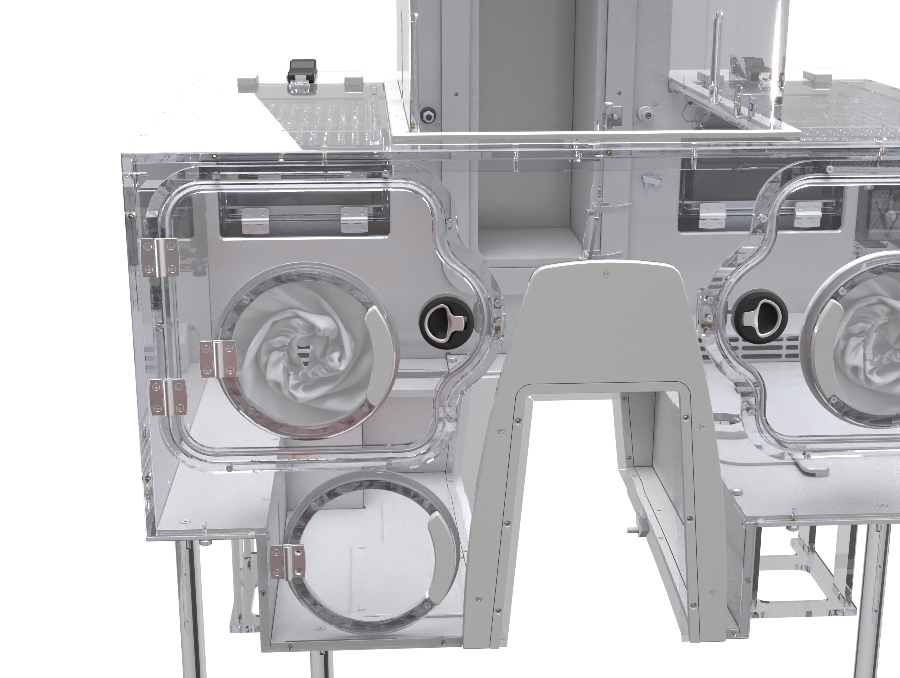

Ergonomic design allows free access to microinjection joysticks.

Features:

  • Built-in heating elements with HEPA filtering included (NO air tubes required)
  • Variable CO2 and Oxygen control, both down to 5%
  • Models available for any microscope and any manipulators on the market
  • Does not enclose micromanipulator joysticks

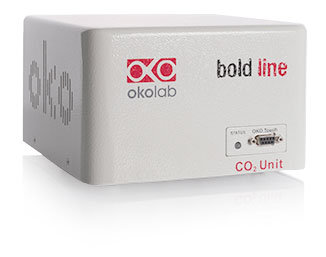

CO2-O2-UNIT-BL-ES

The CO2-O2 controller controls the environment by sampling gas. No sensors are needed in the enclosure working area. It connects to the Temperature Controller via a cable-free connector.

  • CO2 sensor accuracy: 0.1%
  • CO2 range: 0-18%
  • CO2 sensor: 10 year-life Non Dispersive InfraRed (NDIR) dual wave length detector
  • CO2 Sensor calibration routine with external meter or calibration gas
  • Set Point Resolution: 0.1%; Repeatability: better than 0.1%
    input: 100% CO2 as input
  • Touch Screen Interface – OKO-TOUCH
  • Programmable CO2 cycles
  • Compatible with SMART BOX for data logging and remote operation – Optional
    Data Logging via OKOLAB Data Log Software – Optional
  • Alarm Buzzer and External Alarm Connector
  • SDK available for integration in third party software

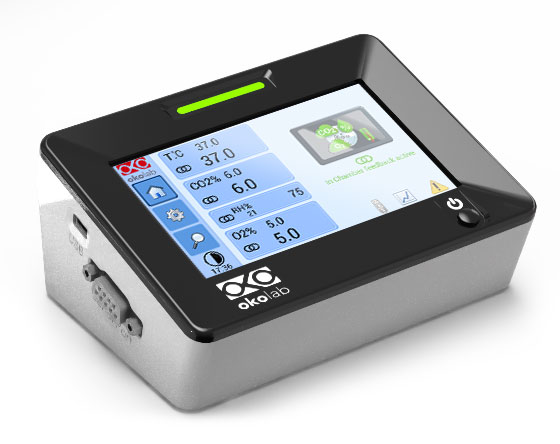

OKO-TOUCH​

OKO-TOUCH is an intuitive and user-friendly touch screen interface. It connects to the gas and temperature controllers, detects all equipment in the system, and displays all supported functions.

  • Control On/Off for the entire system
  • Define set point values
  • Set flow rates of the temperature unit
  • Set flow rates gas controller
  • Display all set points and measured parameters
  • Run self-calibration procedures
