IVF: LEO sensor modules

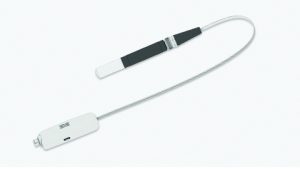

Designed for checking humidity in chambers, incubators, laboratories, and to monitor indoor air quality. Features – Relative Humidity: Sensor:Hygromer HT-1 Measurement range: 0-100% Accuracy at 23°C: ±0.8% RH Response time: 18 s Features – Temperature: Sensor: Pt100 1/3DIN Class B Measurement range: -10 + 100°C Accuracy: ±0.2°C from 20 to 40°C

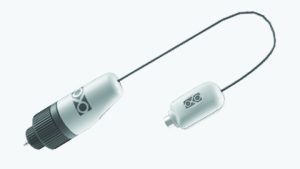

Designed to measure low levels of Volatile Organic Compounds (VOCs) in ART laboratories. It allows qualification of the total VOC (TVOC) level at very low concentrations (<5 ppb). Features: Sensor Type: VOCs with IE below 10.6 eV Measurement range: 0-2000 ppb Minimum detection: 5 ppb Repeatability: ±0.5% full scale Warm up time: 10 min* Lamp […]

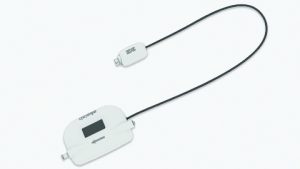

Compact and accurate flow meter with short response time, ideal for instantaneous gas flow measurements. The highly compact and lightweight design makes it ideal for many different work environments. The presence of display allows to use the sensor module also as a standalone device. Features: Sensor:MEMS Measurement range: 0-200 ml/min Accuracy: ± (2.0 reading +0.5% […]

Designed to measure carbon dioxide at ppm in offices, laboratories, hospitals, and generally, wherever indoor air quality is important for the occupants’ comfort and health. The probe is temperature and pressure compensated. Features: Sensor: Non-dispersive infrared (NDIR) Measurement range: 0-10000 ppm Accuracy: ±(50ppm +3% reading) Response time: 2 minutes

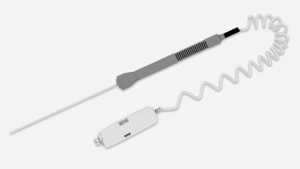

Temperature probe, ideal for measurements of incubator temperature when sampling port access is available. T2-MODULE has an external diameter of 2 mm and is suitable for temperature measurements of bench-top and high-top incubators where the temperature monitoring port has a diameter larger than 2 mm. Features: Sensor: PT1000 RTD Class A Measurement range: 0-60°C Accuracy: […]

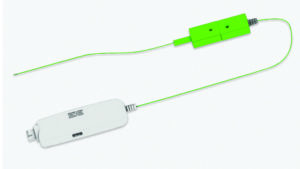

Small, flexible, calibrated, and immersible thermocouple. Ideal for measurements in liquids, such as culture media in a dish. T1-MODULE has a negligible diameter (0.13mm) and it can be directly introduced into an incubator, even if it lacks a dedicated temperature measurement port. Features: Sensor: K-type thermocouple Measurement range: 0-60°C Accuracy: ±0.1°C from 20 to 50°C

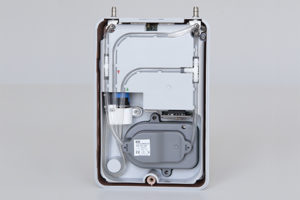

The CO2-O2-MODULE (included automatically with purchase of LEO 2.0) measures the CO2 and O2 % concentration in the incubator’s sampled gas. The measured values are temperature- and pressure-compensated. CO2-O2-MODULE’s lifetime is 5 years.  Okolab recommends once-yearly calibration. No need to part ways with your meter to keep the sensor calibrated: CO2-O2-MODULE can be easily extracted […]
