H301-LG-DLS

Compatible with Leica DLS module, it allows usage of illumination and detection lenses. Fits in the Super Z galvo stage, by replacing the Leica specimen holder



The chamber can fit:
  • 35/60 mm Petri dishes
Features:
  • Compatible with Leica DLS module, it allows usage of illumination and detection lenses
  • Includes an objective collar for detection lenses Leica HC APO L 10x/0.3 W and Leica HC FLUOTAR L 25x/0.95 W
  • Uniformly heated by means of embedded electric resistances and covered with a temperature controlled lid
  • Spring locks hold Petri dishes, in correct position inside the chamber
  • Perfusion holes: 12 channels for 2.0 mm O.D. tubings are available
  • The chamber screws onto Super Z galvo stage
  • Chamber weight, 130 g.
  • To control the humidity into the chamber humidity module is recommended: HM-ACTIVE

Available Inserts

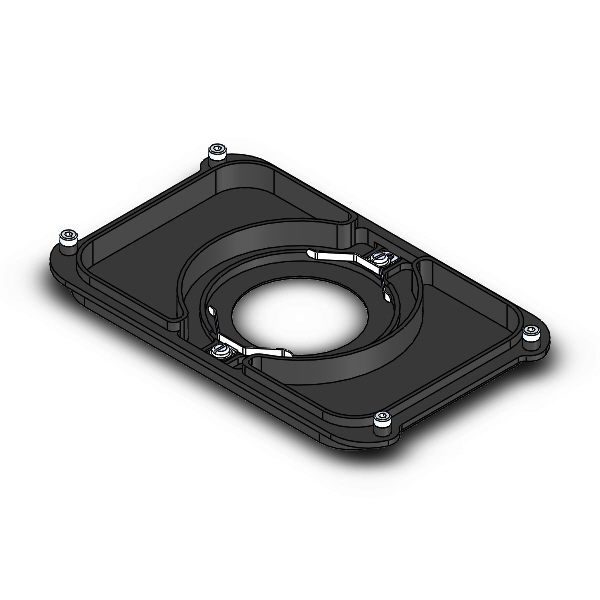

1x35-DLS #1 35mm Petri-dish holder 1x35-DLS.JPG

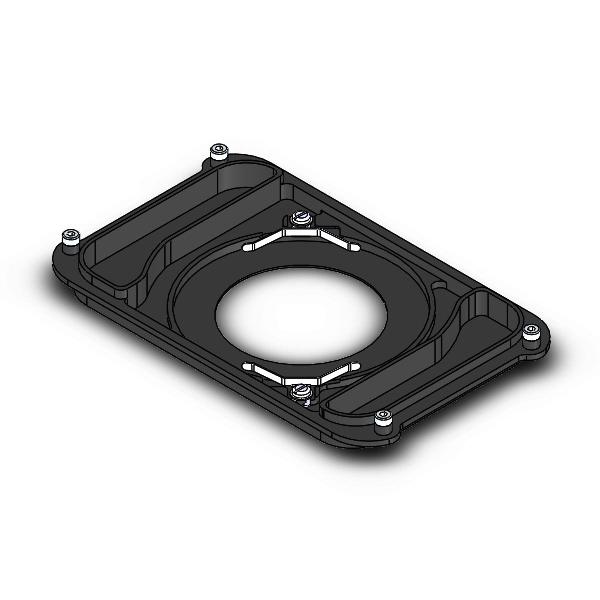

1x60-DLS #1 60mm Petri-dish holder 1x60-DLS.JPG

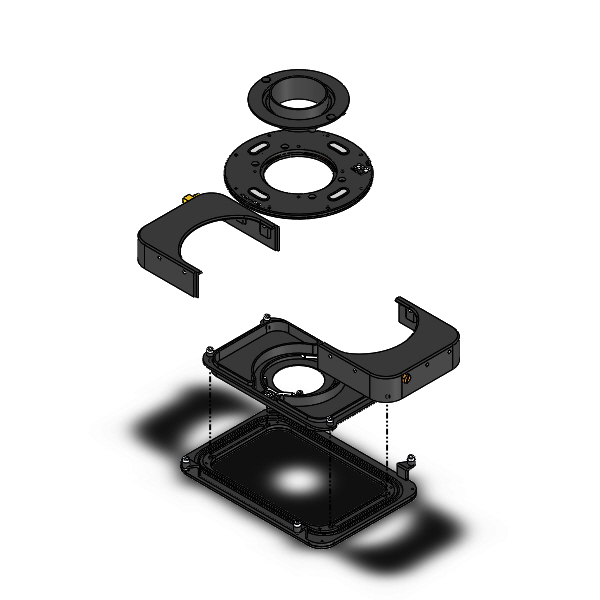

H301-LG-DLS - Components

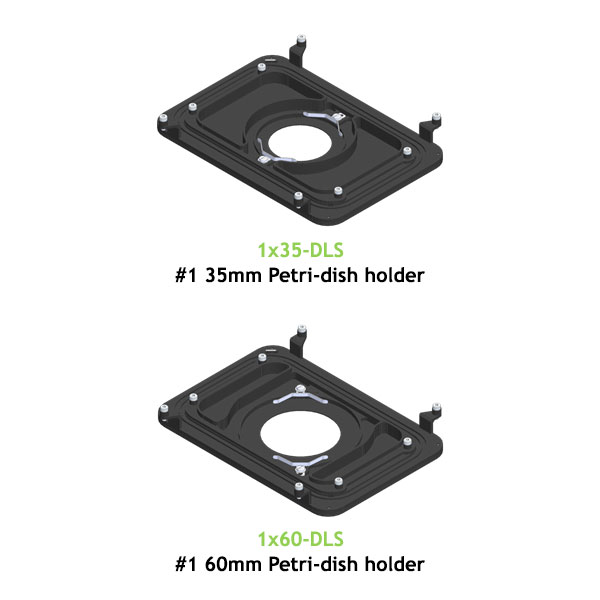

H301-LG-DLS - Available inserts
H301-LG-DLS - Dimensions
