H201-NIKON-NZ100/200/500-N
Stage compatibility: it screws onto Mad Labs Z100/500 Piezo Z-stages - comes with Sliding Lid
Magnetic inserts allow to use:
- 35/60 mm Petri
- 1x3 in. / 1x2 in. chambered slides
- 6-12-24-48-96 MW plates
- Sliding lid for easy pipetting
- Optional lids available for Kohler Illumination, Laser Safety, Injection during imaging
- Flexible chamber height thanks to the removable chamber riser and the optional Koheler Lid
- Magnets allow easy interchange chamber inserts
- Magnetic locks hold Petri, Slides and MW in correct position inside the chamber
- Perfusion holes: 12 channels for 2.5mm O.D. tubings are available in the chamber riser
Koehler illumination ?
Remove the chamber riser and use the Koehler Lid

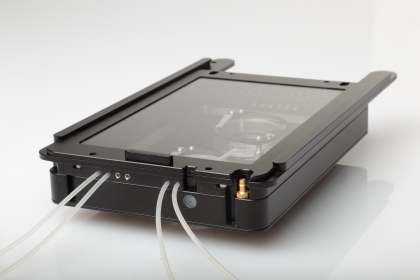

Perfusion ?
Each chamber features up to 12 holes for inlet and outler of perfusion tubings

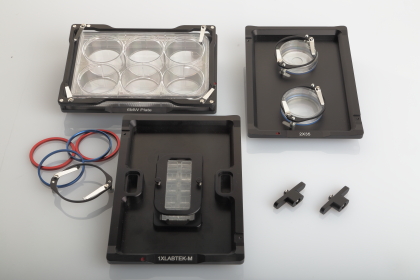

Different sample holder ?
Change the chamber insert. It is a 5 seconds task with the magnetic sample holders
Keep the sample in the correct position by using the Magnetic Locks
Available Inserts
| H201-MW-HOLDER | Multiwell plates holder |   |
| 1x35-M | #1 35mm Petri-dish |  |
| 1xGS-M | #1 1x3in. chamberslide |  |
| 1xLABTEK-M | #1 Lab-Tek 1x2 in. chambered cover glass |  |
| 1xLABTEK-II-M | #1 Lab-Tek II 1x2 in. chambered cover glass |  |
| 1x60-M | #1 60mm Petri-dish |  |
| 1xT25-M | #1 Nunc and Greiner T25 flask |  |
| 2x35-M | #2 35mm Petri-dish |  |
| 2xGS-M | #2 1x3in. chamberslides |  |
| 2xLABTEK-M | #2 Lab-Tek 1x2 in. chambered cover glass |  |
| 2xLABTEK-II-M | #2 Lab-Tek II 1x2 in. chambered cover glass |  |
| 2x60-M | #2 60mm Petri-dish |  |
| 4x35-M | #4 35mm Petri-dish |  |
| GS35-M | #1 1x3in. chamberslide and #2 35mm Petri-dish |  |
| LABTEK-35-M | #1 Lab-Tek 1x2 in. chambered cover glass and #2 35mm Petri-dish |  |
| LABTEK-II-35-M | #1 Lab-Tek II 1x2 in. chambered cover glass and #2 35mm Petri-dish |  |
| LABTEK-60-M | #1 Lab-Tek 1x2 in. chambered cover glass and #1 60mm Petri-dish |  |
| LABTEK-II-60-M | #1 Lab-Tek II 1x2 in. chambered cover glass and #1 60mm Petri-dish |  |
| GS60-M | #1 1x3in. chamberslide and #1 60mm Petri-dish |  |
| 6035-M | #1 60mm Petri-dish and #1 35mm Petri-dish |  |
Available LIDs
| H201-KOEHLER LID | Glass lid that reduces the height of the chamber and allows to work under Koehler illumination. Minimum condenser working distance (without chamber riser): 22mm |  |
| H201-INJECTION-LID | Glass lid with two small openings (sealed with flexible plastic) to allow injection or permanent access to the specimen Note: compatible only with specimen holder 1x35 |  |
| H201-LASER-INTERLOCK-LID | Glass lid with a safety switch that connects to the laser box. The switch turns off the laser, when the lid is lifted Note: compatible only with specimen holder 1x35 |  |
