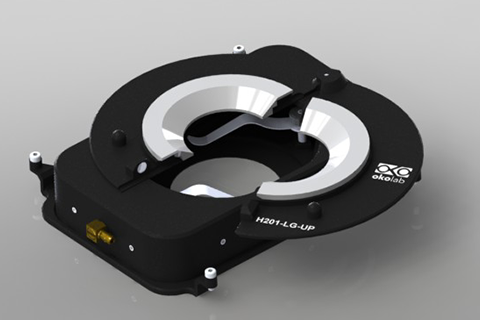

H201-LG-UP

Stage compatibility: fits on Leica Super Z Galvo Stage (SP5/SP8) on Upright Microscopes
  • Part number of the objectives in use must be specified in purchase order
The chamber can fit:
  • 35/60 mm Petri
  • 1x3 in. / 1x2 in. chambered slides
Features:
  • Suitable for dipping lens
  • Manageable chamber thanks to the opening of the lid to introduce the objective
  • Magnets allow easy interchange chamber insert
  • Magnetic locks hold Petri, Slides in correct position inside the chamber
  • Perfusion holes: 12 channels for 2.0 mm O.D. tubings are available
  • The chamber screws onto galvo Stage
  • Chamber weight, 130 g.
  • To control the humidity into the chamber humidity module is recommended: HM-ACTIVE


Available Inserts

H201-EC-LG-UP-1x35 #1 35mm Petri-dish
H201-EC-LG-UP-1xGS #1 1x3 in. chamber slide
H201-EC-LG-UP-1xLABTEK #1 Lab-Tek 1x2 in. chambered cover glass
H201-EC-LG-UP-1xLABTEK-II #1 Lab-Tek II 1x2 in. chambered cover glass
H201-EC-UP-1x60 #1 60mm Petri-dish
