H101-UP
Stage compatibility: fits on Upright Microscopes
- Part number of the objectives in use must be specified in purchase order
- XY stage model and serial number must be specified in purchase order
The chamber can fit:

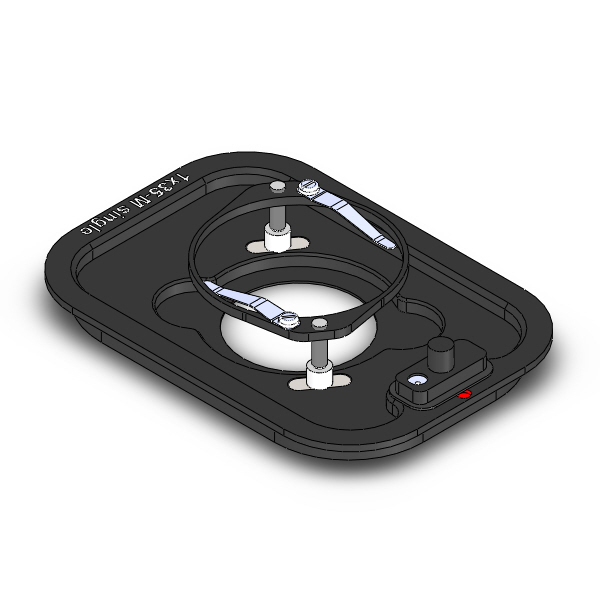

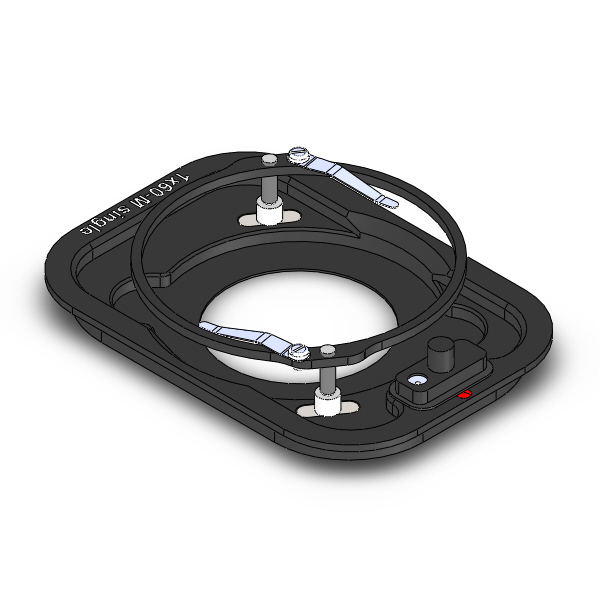

- 35/60 mm Petri

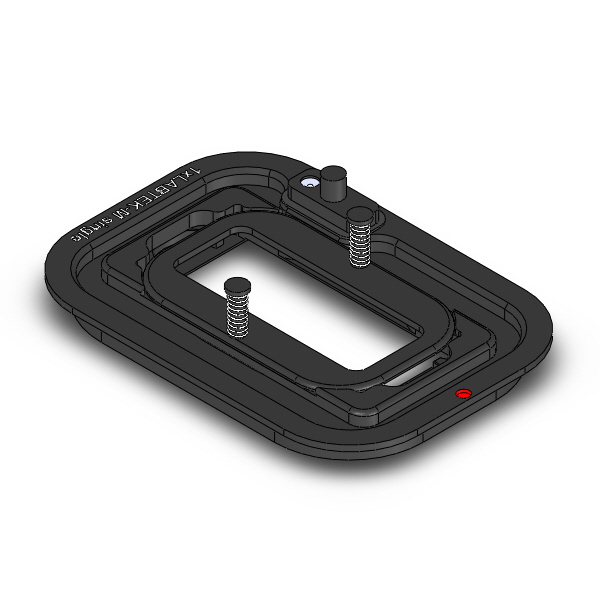

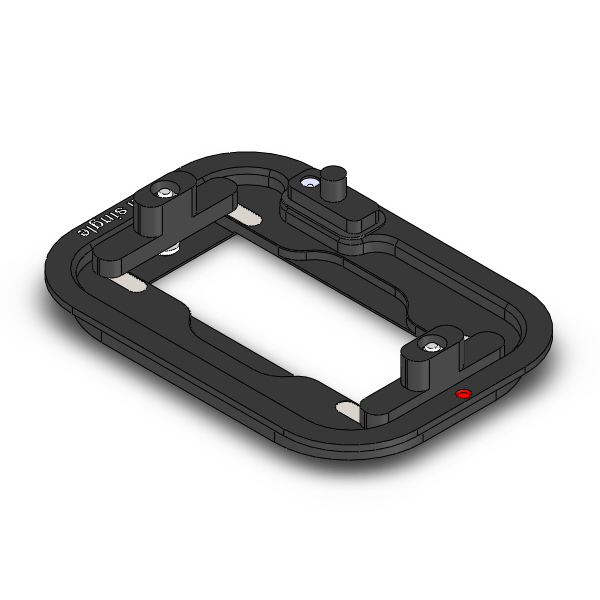

- 1x3 in. / 1x2 in. chambered slides
- Suitable for dipping lens
- Manageable chamber thanks to the opening of the lid to introduce the objective
- Magnets allow easy interchange chamber insert
- Magnetic locks hold Petri, Slides in correct position inside the chamber
- Perfusion holes: 12 channels for 2.0 mm O.D. tubings are available
- To control the humidity into the chamber humidity module is recommended: HM-ACTIVE

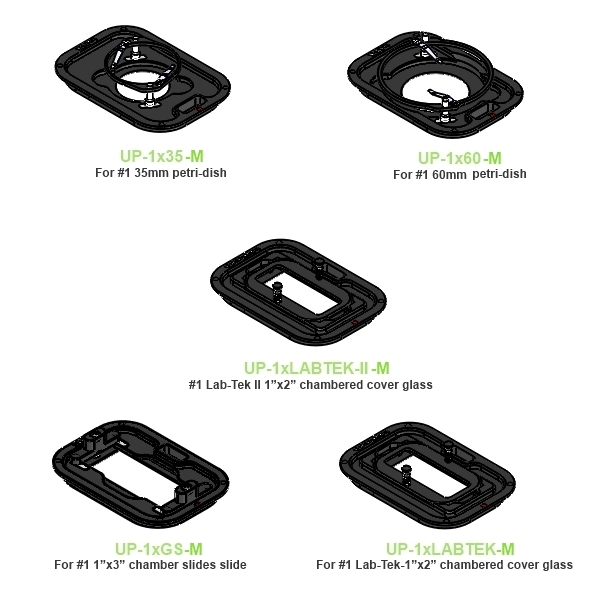

![H101-UP-[ADAPTERS-1]_600x600.jpg](/images/okaImages/product_categories/live_cell_imaging/heating_cooling/gas_chambers/h101_up/H101-UP-%5BADAPTERS-1%5D_600x600.jpg)

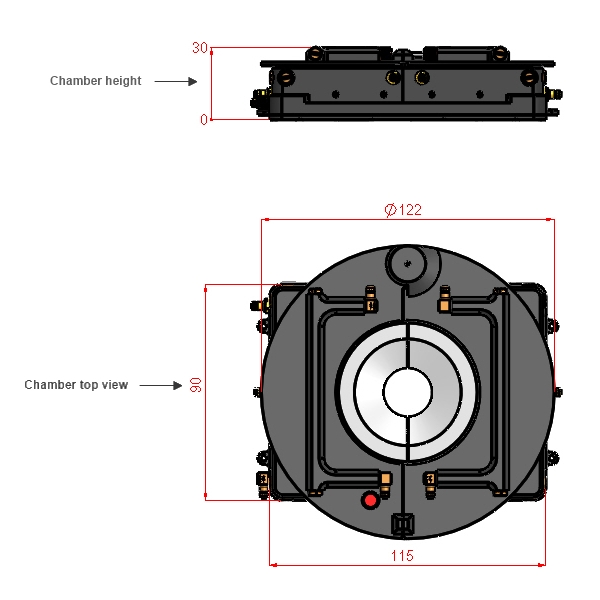

![H101-UP-[DIMENSIONS]_600x600.jpg](/images/okaImages/product_categories/live_cell_imaging/heating_cooling/gas_chambers/h101_up/H101-UP-%5BDIMENSIONS%5D_600x600.jpg)
