H201-UP
Stage compatibility: fits on Upright Microscopes
- Part number of the objectives in use must be specified in purchase order
- XY stage model and serial number must be specified in purchase order
The chamber can fit:
- 35/60 mm Petri
- 1x3 in. / 1x2 in. chambered slides
- Suitable for dipping lens
- Manageable chamber thanks to the opening of the lid to introduce the objective
- Magnets allow easy interchange chamber insert
- Magnetic locks hold Petri, Slides in correct position inside the chamber
- Perfusion holes: 12 channels for 2.0 mm O.D. tubings are available
- To control the humidity into the chamber humidity module is recommended: HM-ACTIVE

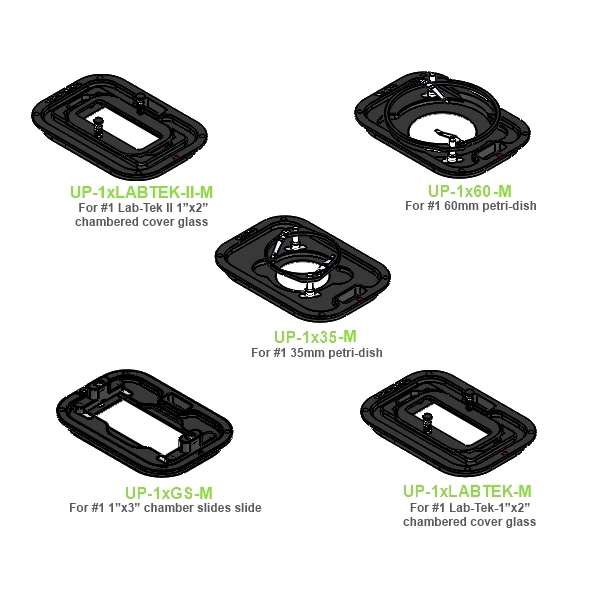

Available Inserts
| UP-1x35-M | #1 35mm Petri-dish |   |
| UP-1xGS-M | #1 1x3 in. chamber slide |  |
| UP-1xLABTEK-M | #1 Lab-Tek 1x2 in. chambered cover glass |  |
| UP-1xLABTEK-II-M | #1 Lab-Tek II 1x2 in. chambered cover glass |  |
| UP-1x60-M | #1 60mm Petri-dish |  |

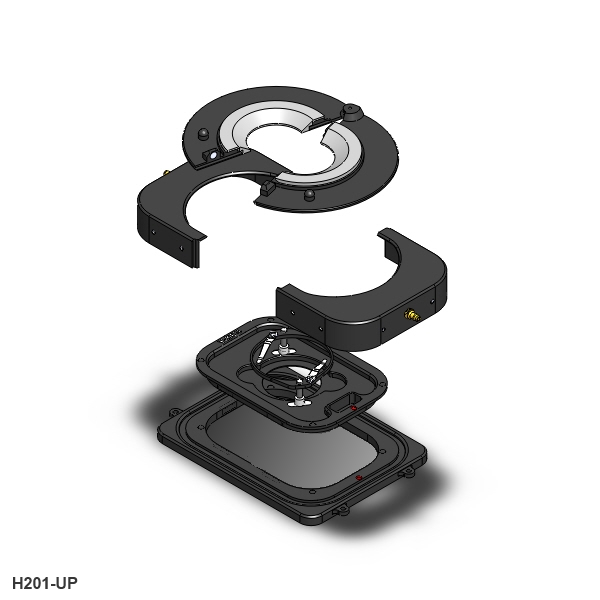

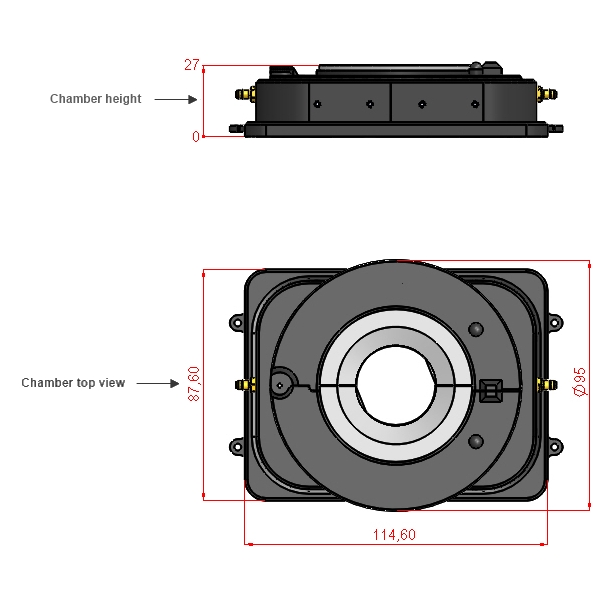

Available Drawings
![H201-UP-[Exploded-OPEN]_600x600.jpg](/images/okaImages/product_categories/live_cell_imaging/cage_incubator/gas_chambers/h201_up/H201-UP-%5BExploded-OPEN%5D_600x600.jpg)
![H201-UP-[ADAPTERS-1]_600X600.jpg](/images/okaImages/product_categories/live_cell_imaging/cage_incubator/gas_chambers/h201_up/H201-UP-%5BADAPTERS-1%5D_600X600.jpg)
![H201-UP-[LID-STANDARD]-[DIMENSIONS]_600x600.jpg](/images/okaImages/product_categories/live_cell_imaging/cage_incubator/gas_chambers/h201_up/H201-UP-%5BLID-STANDARD%5D-%5BDIMENSIONS%5D_600x600.jpg)
