H201-PI-736-160x110

Screws onto  Physik Instrumente PI P-736 with 160x110 aperture - comes with Sliding Lid
  • P-736.ZRO, P-736.ZRN, P-736.ZCO, P-736.ZCN
Magnetic interchangeable inserts allow to use:
  • 35/60 mm Petri
  • 1x3 in. / 1x2 in. chambered slides
  • 6-12-24-48-96 MW plates
Features:
  • Sliding lid for easy pipetting
  • Optional lids available for Kohler Illumination, Laser Safety, Injection during imaging
  • Flexible chamber height thanks to the removable chamber riser and the optional Koheler Lid
  • Magnets allow easy interchange chamber inserts
  • Magnetic locks hold Petri, Slides and MW in correct position inside the chamber
  • Perfusion holes: 12 channels for 2.5mm O.D. tubings are available in the chamber riser




H201-K-FRAME - slim profile

Koehler illumination ?

Remove the chamber riser and use the Koehler Lid


H201-K-FRAME - perfusion holes

Perfusion ?

Each chamber features up to 12 holes for inlet and outler of perfusion tubings


Chamber Inserts and Sample Locks - magnetic

Different sample holder ?

Change the chamber insert. It is a 5 seconds task with the magnetic sample holders

Keep the sample in the correct position by using the Magnetic Locks

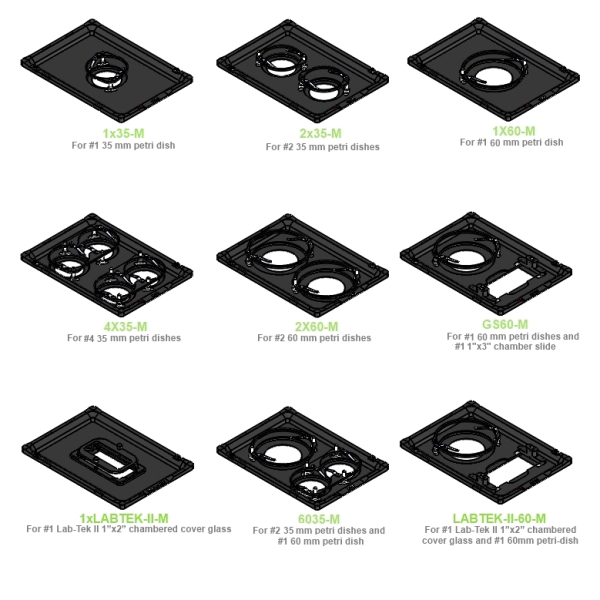

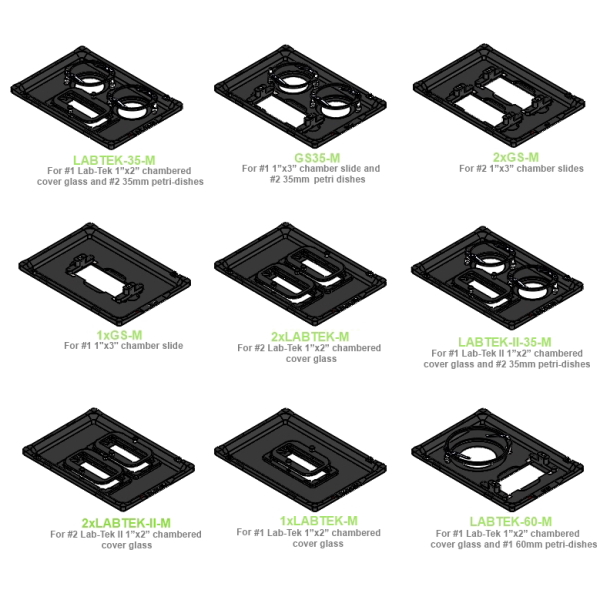

Available Inserts

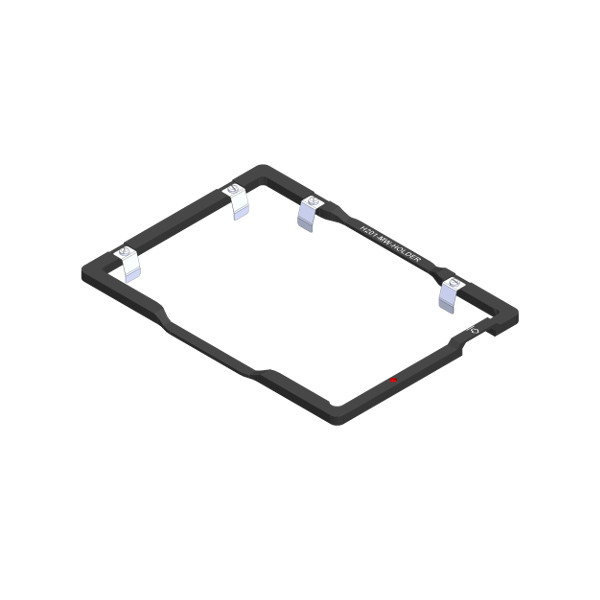

H201-MW-HOLDER Multiwell plates holder /H201-MW-HOLDER_600x600.JPG
1x35-M #1 35mm Petri-dish 1x35-M.JPG
1xGS-M #1 1x3in. chamberslide 1xGS-M.JPG
1xLABTEK-M #1 Lab-Tek 1x2 in. chambered cover glass 1xLABTEK-M.JPG
1xLABTEK-II-M #1 Lab-Tek II 1x2 in. chambered cover glass 1xLABTEK-II-M.JPG
1x60-M #1 60mm Petri-dish 1x60-M.JPG
1xT25-M #1 Nunc and Greiner T25 flask 1xT25-M.JPG
2x35-M #2 35mm Petri-dish 2x35-M.JPG
2xGS-M #2 1x3in. chamberslides 2xGS-M.JPG
2xLABTEK-M #2 Lab-Tek 1x2 in. chambered cover glass 2xLABTEK-M.JPG
2xLABTEK-II-M #2 Lab-Tek II 1x2 in. chambered cover glass 2xLABTEK-II-M.JPG
2x60-M #2 60mm Petri-dish 2x60-M.JPG
4x35-M #4 35mm Petri-dish 4x35-M.JPG
GS35-M #1 1x3in. chamberslide and #2 35mm Petri-dish GS35-M.JPG
LABTEK-35-M #1 Lab-Tek 1x2 in. chambered cover glass and #2 35mm Petri-dish LABTEK-35-M.JPG
LABTEK-II-35-M #1 Lab-Tek II 1x2 in. chambered cover glass and #2 35mm Petri-dish LABTEK-II-35-M.JPG
LABTEK-60-M #1 Lab-Tek 1x2 in. chambered cover glass and #1 60mm Petri-dish LABTEK-60-M.JPG
LABTEK-II-60-M #1 Lab-Tek II 1x2 in. chambered cover glass and #1 60mm Petri-dish LABTEK-II-60-M.JPG
GS60-M #1 1x3in. chamberslide and #1 60mm Petri-dish GS60-M.JPG
6035-M #1 60mm Petri-dish and #1 35mm Petri-dish 6035-M.JPG

Available LIDs

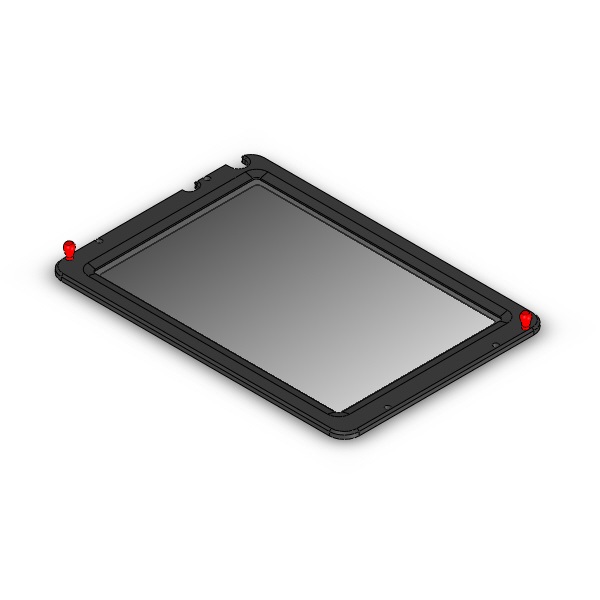

H201-KOEHLER LID Glass lid that reduces the height of the chamber and allows to work under Koehler illumination. Minimum condenser working distance (without chamber riser): 22mm H201-KOEHLER-LID.JPG

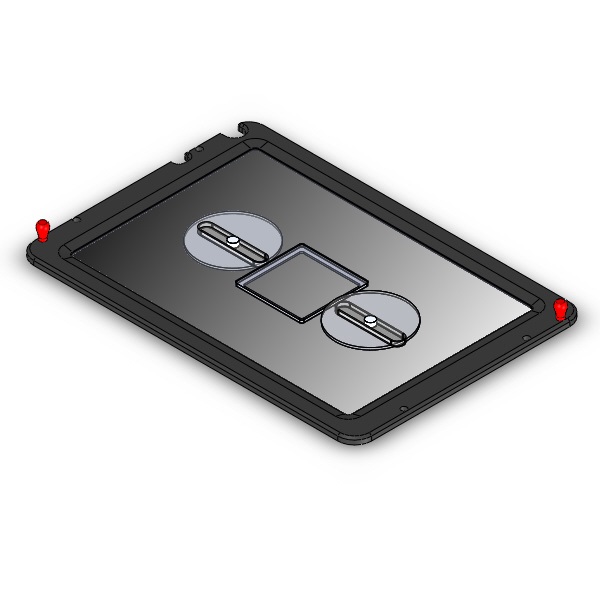

H201-INJECTION-LID Glass lid with two small openings (sealed with flexible plastic) to allow injection or permanent access to the specimen Note: compatible only with specimen holder 1x35 H201-INJECTION-LID.JPG

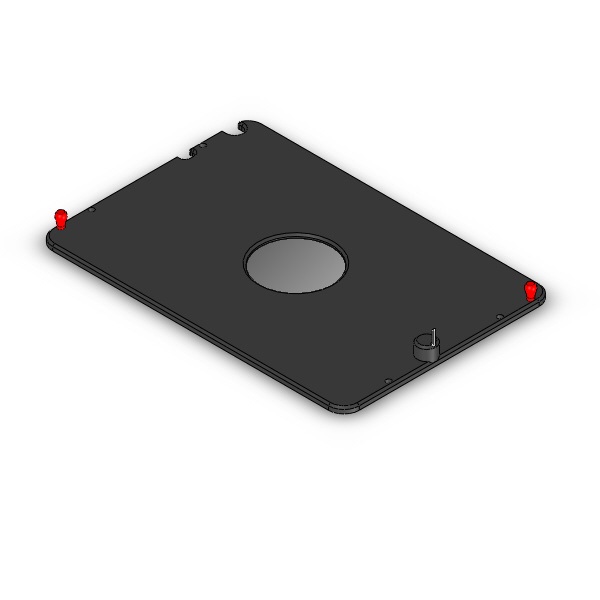

H201-LASER-INTERLOCK-LID Glass lid with a safety switch that connects to the laser box. The switch turns off the laser, when the lid is lifted Note: compatible only with specimen holder 1x35 H201-LASER-INTERLOCK-LID.JPG

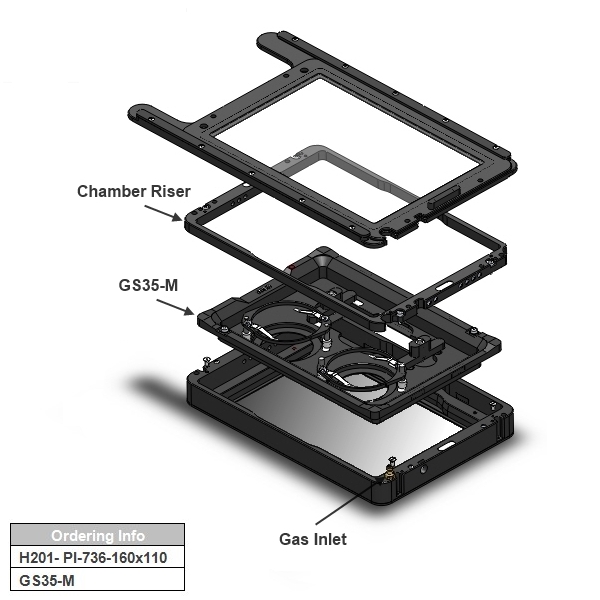

H201-PI-736-160x110-[SLIDING LID]_600x600.jpg

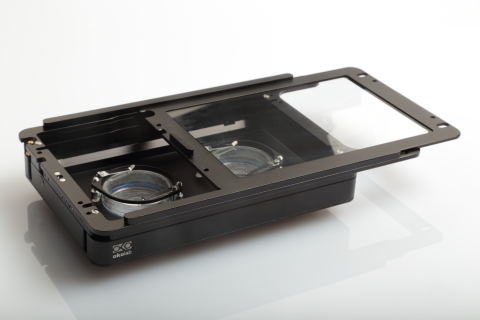

H201-PI-736-160x110 with Sliding Lid

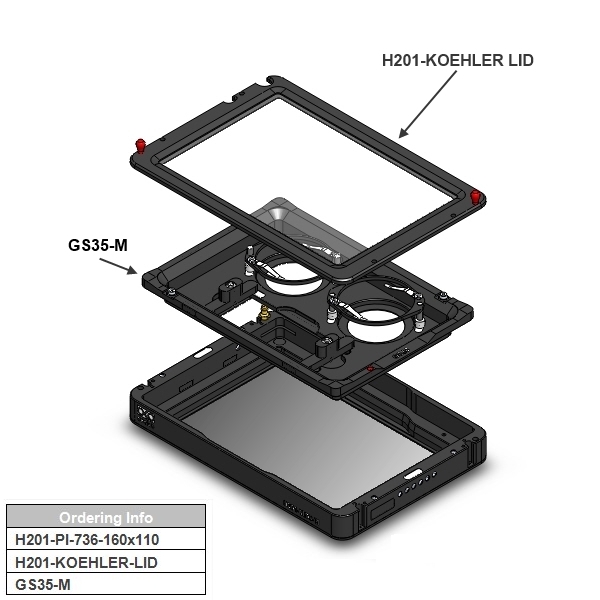

H201-PI-736-160x110 with Koehler Lid
H201-PI-736-160x110 - Available Lids

H201-PI-736-160x110 with Sliding Lid - DIMENSION

H201-PI-736-160x110 with Koehler Lid - DIMENSIONS

H201-PI-736-160x110 - Magnetic sample locks

H201-PI-736-160x110 - Magnetic inserts
H201-PI-736-160x110 - Magnetic insterts

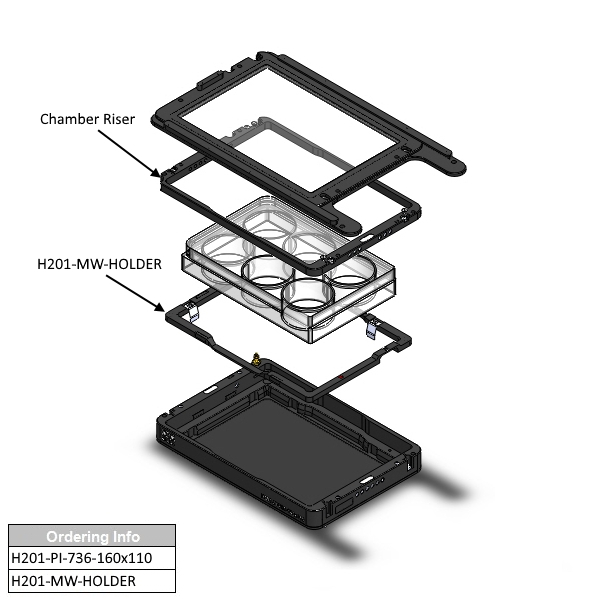

H201-PI-736-160x110 - 6MW Plate-requires chamber-riser
