ENCLOSURE - EXAMPLES ON NIKON TI

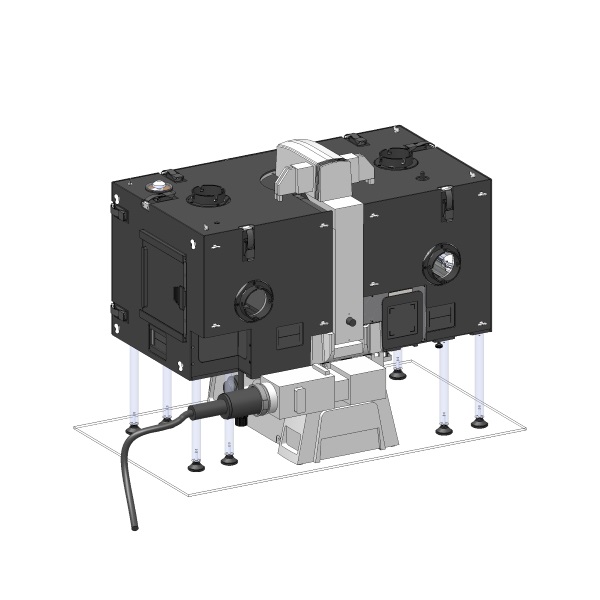

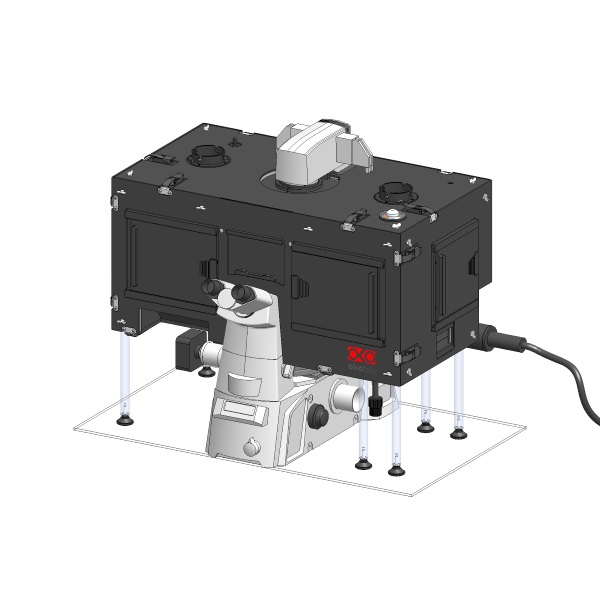

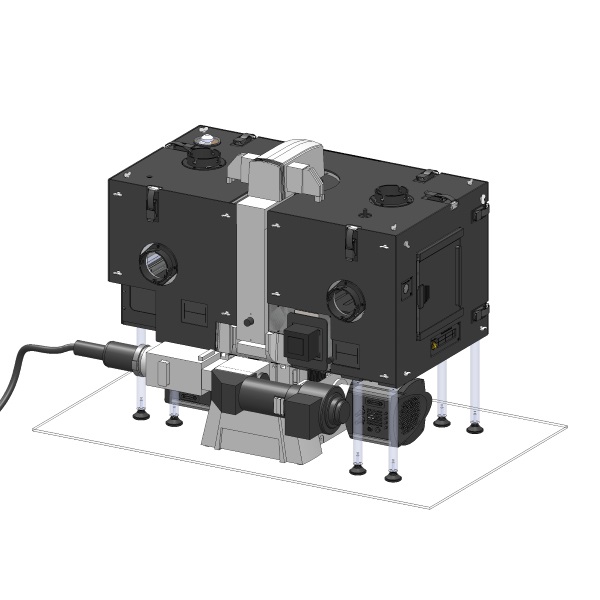

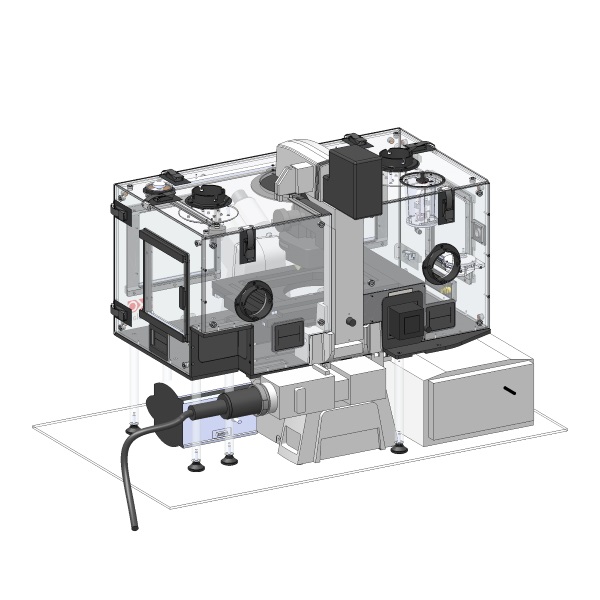

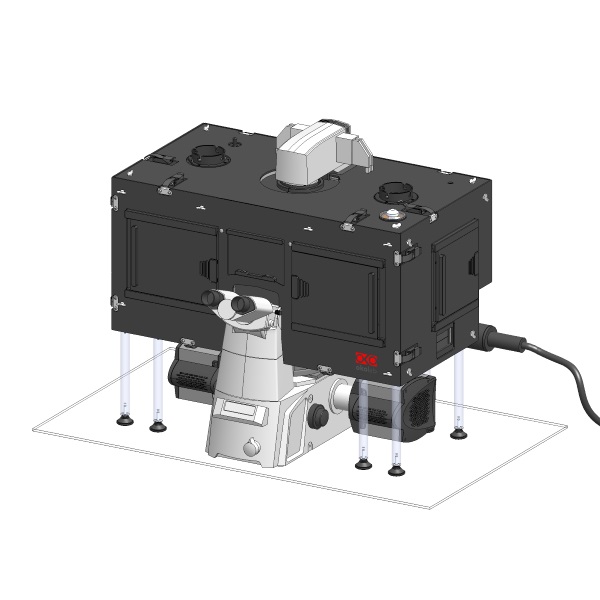

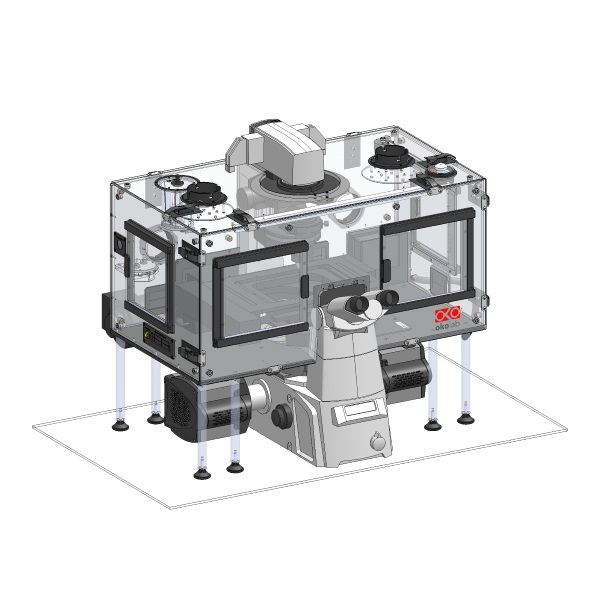

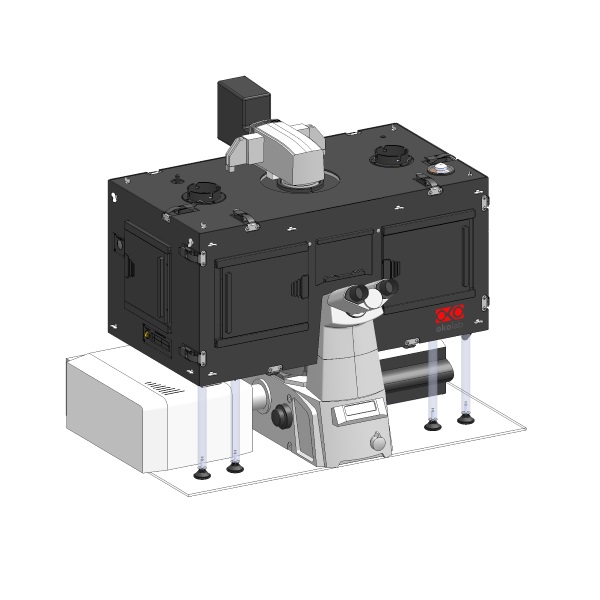

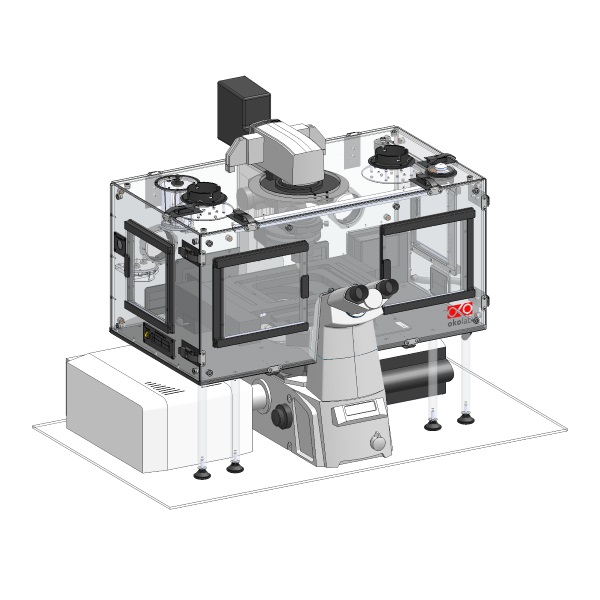

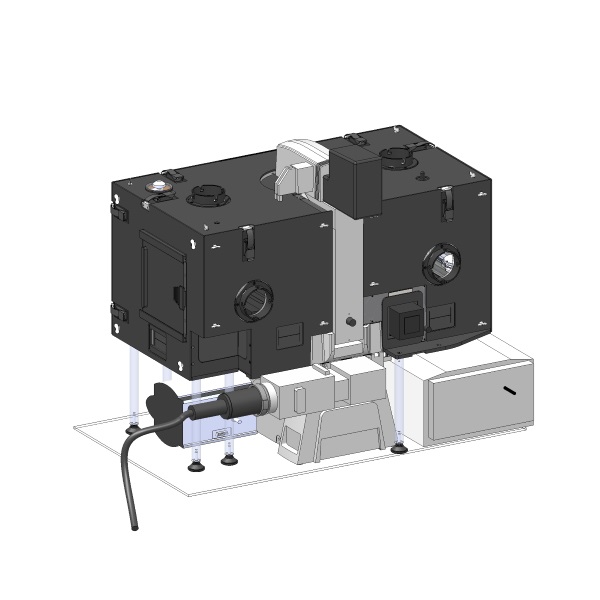

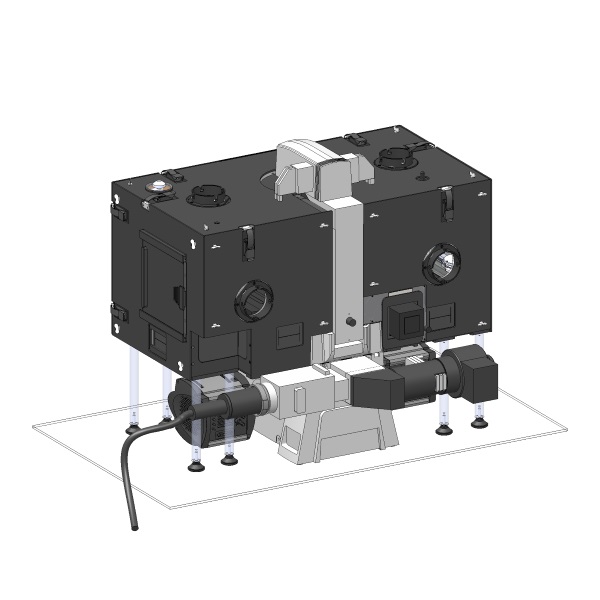

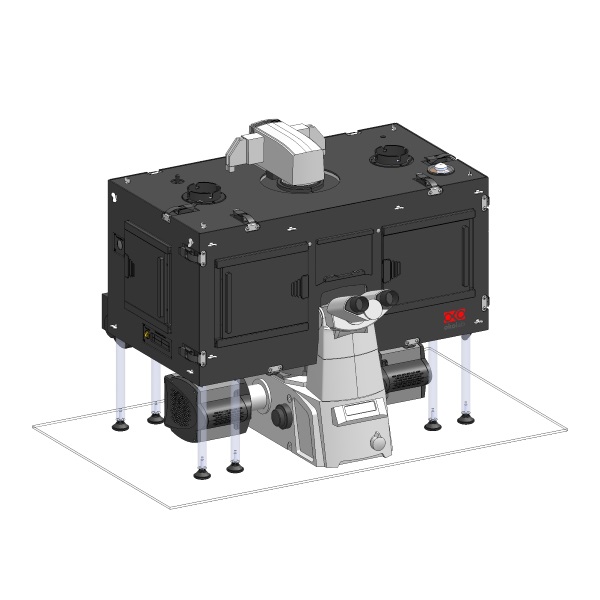

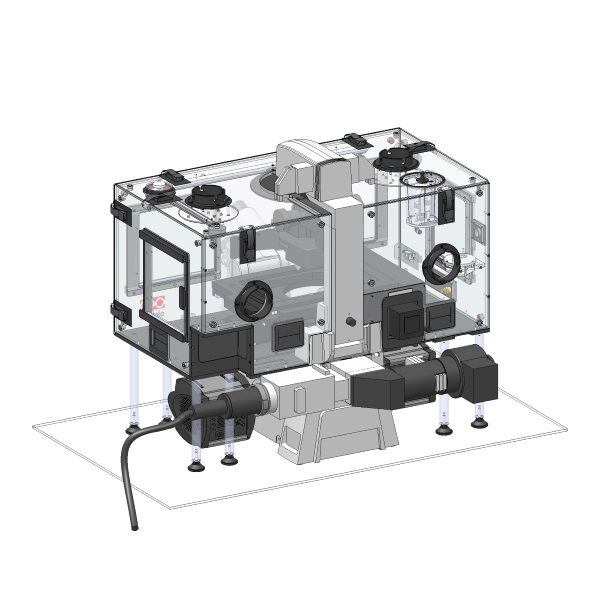

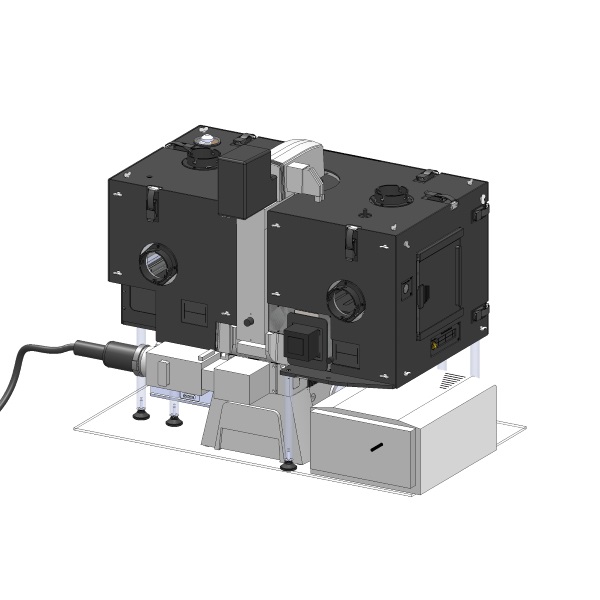

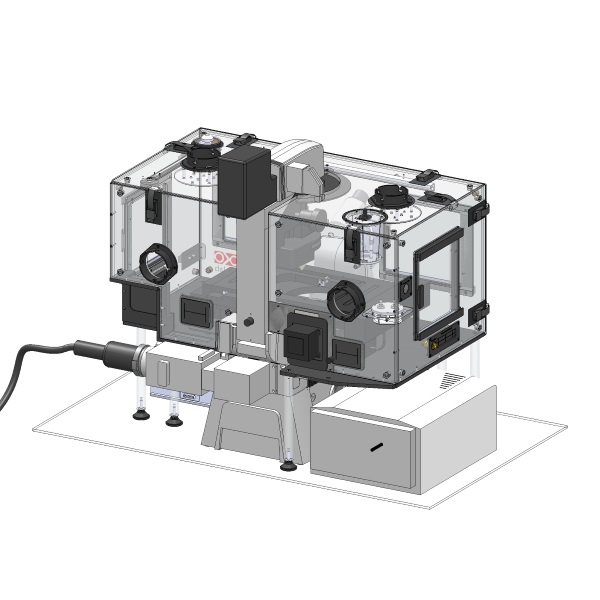

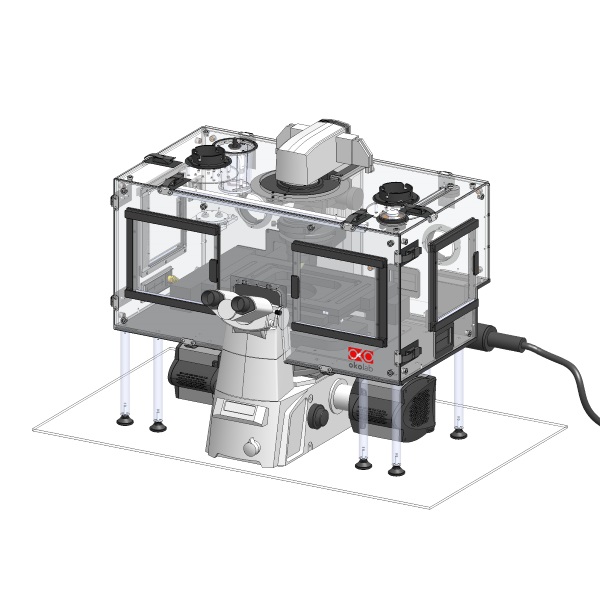

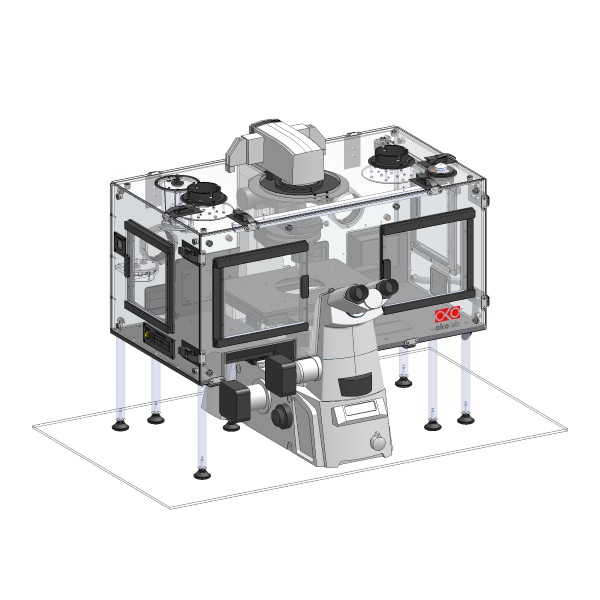

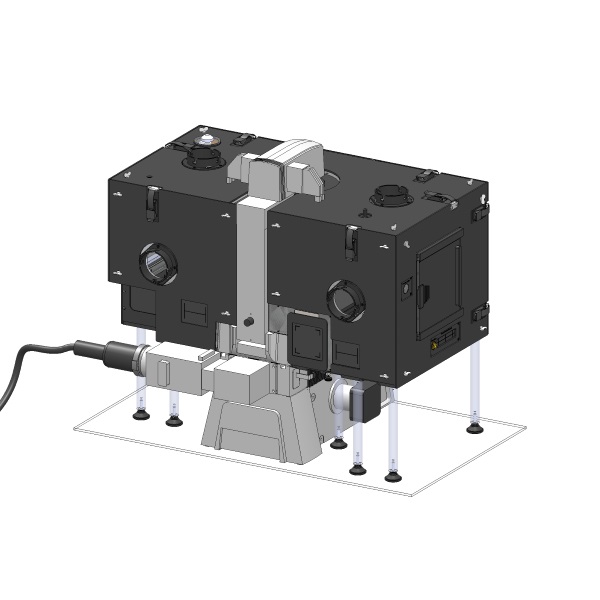

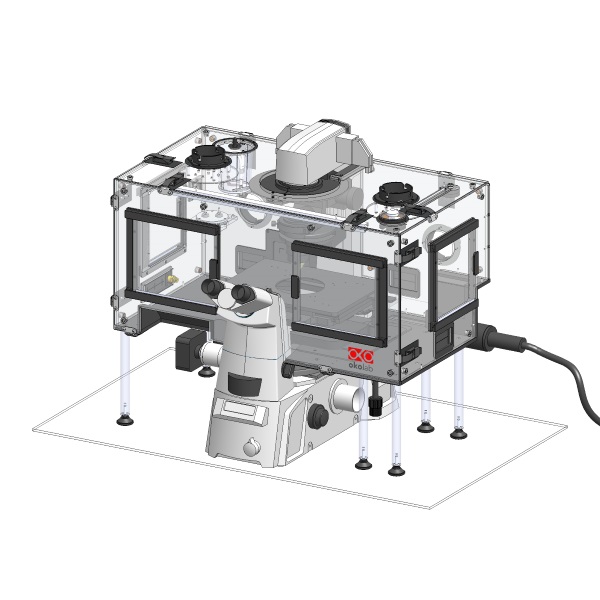

In this page we report drawings of the enclosure for three configurations, based on the microscope Nikon TI.

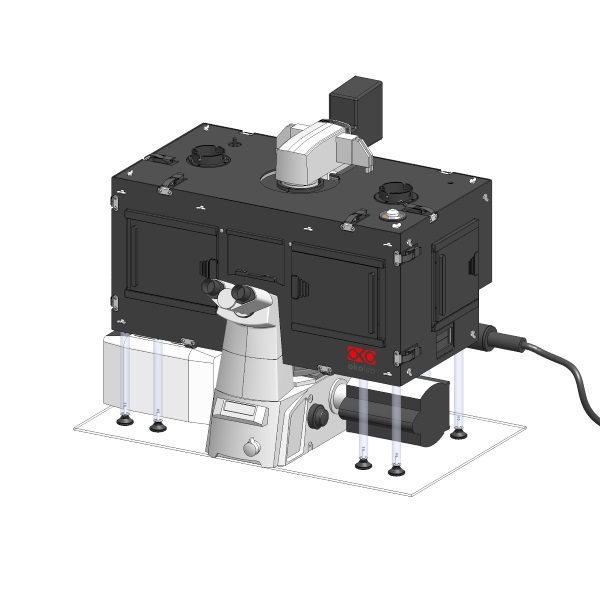

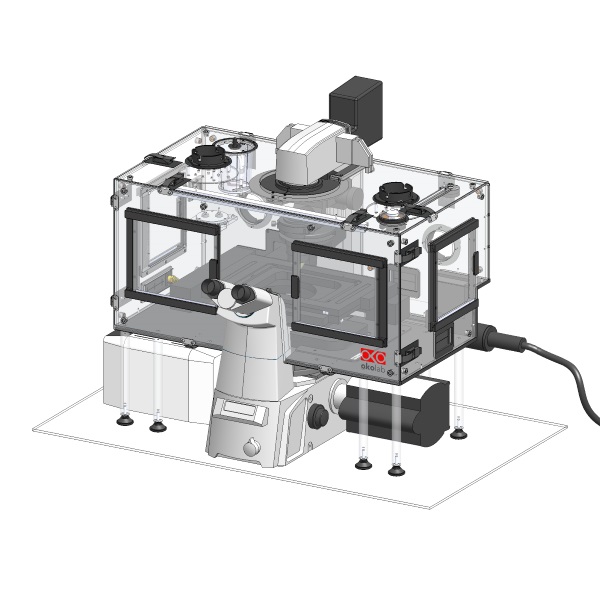

 Nikon TIConfocal A1RN-STORM
Body Nikon Ti  Nikon Ti Nikon Ti
Eyepiece Eyepiece Tube Base Unit with Side Port and Nikon Camera Standard Standard
XY-Stage TI-SR Mechanical Stage TI-S-ER Motorized Stage with Encoders TI-S-ER Motorized Stage with Encoders
Back Port TI-FL Epi-fl Illuminator Unit with fiber optic illuminator TI-FL Epi-fl Illuminator Unit with fiber optic illuminator TTI-TIRF-E Motorized TIRF Illuminator Unit with fiber optic illuminator
Left Port Nikon camera  Confocal Unit A1R iXon EMCCD
Right Port none  iXon EMCCD  iXon EMCCD
Nosepiece Perfect Focus (PFS2) Perfect Focus (PFS2) Perfect Focus (PFS2)
