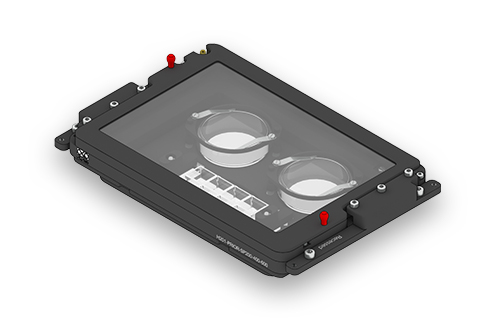

H201-PRIOR-SP200-400-600

Stage compatibility: fits on Queensgate SP200/400/450/600 Piezo on Prior H117/HLD117 and on Nikon XY motorized stages underneath the piezo

The chamber can fit:
  • 35/60 mm Petri
  • 1x3 in. chambered slides
  • 1”x2” Lab-Tek chambered cover glass type I and type II
  • 6-12-24-48-96 well plates
Features:
  • Magnets allow easy interchange chamber inserts
  • Perfusion holes: channels for 2mm O.D. tubings are available in the chamber riser
  • Magnetic locks hold Petri, Slides and MW in correct position inside the chamber
  • Two alternative kinds of spacers are included, choose according to the type of holders that your XY stage accepts: Recessed or ExtraRecessed.
  • Removable chamber riser to increase the height of the chamber from 24 to 30 mm, often required when using multi-well (MW) plates.



H201-PRIOR-SP200-400-600 on stage
H201-PRIOR-SP200-400-600 COMPONENTS
Chamber Inserts and Sample Locks - magnetic
