ENCLOSURE - EXAMPLES ON OLYMPUS

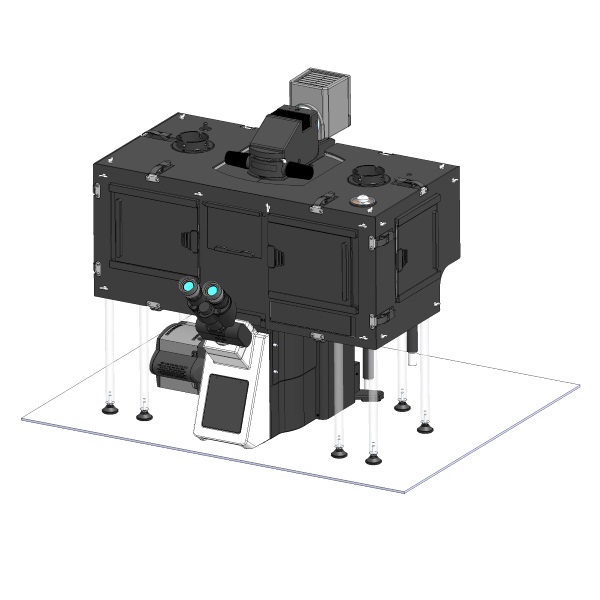

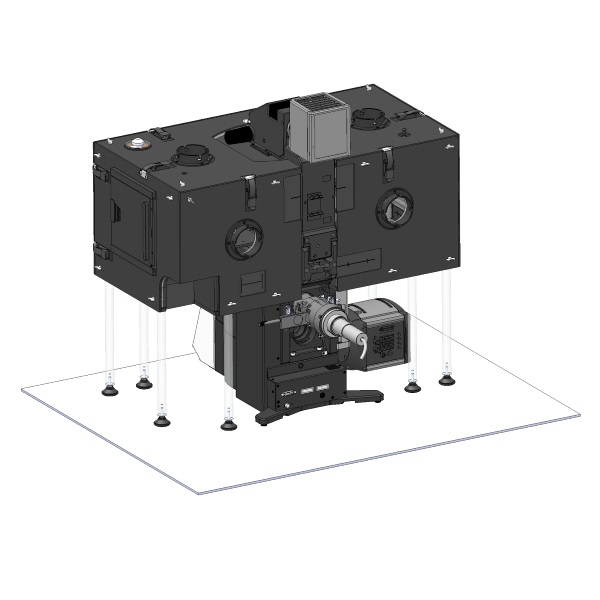

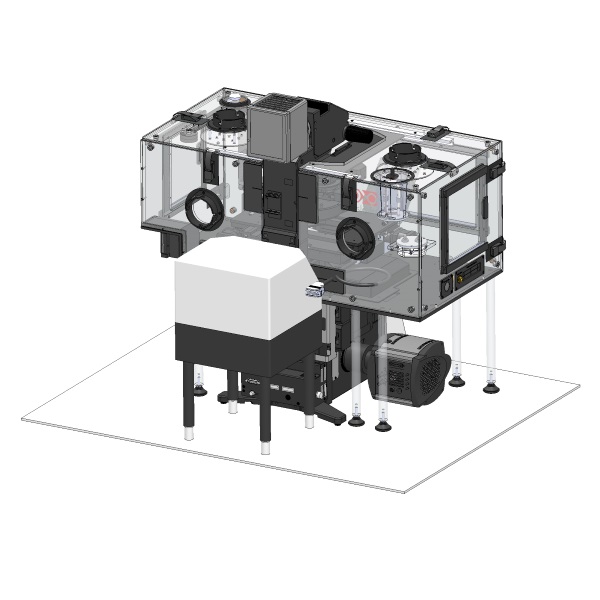

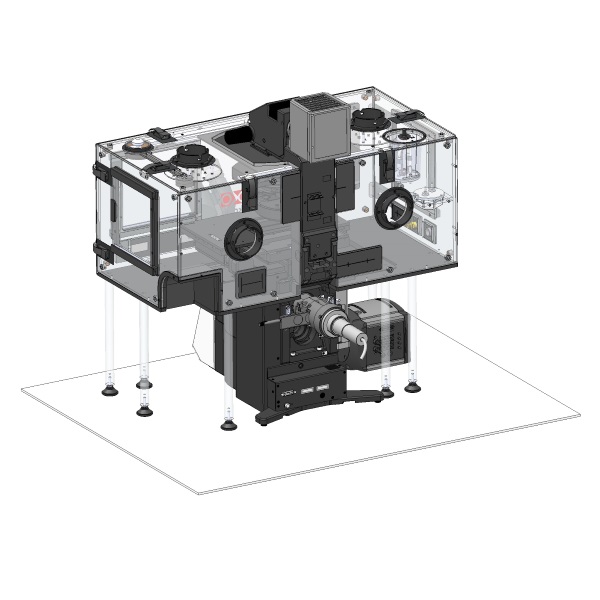

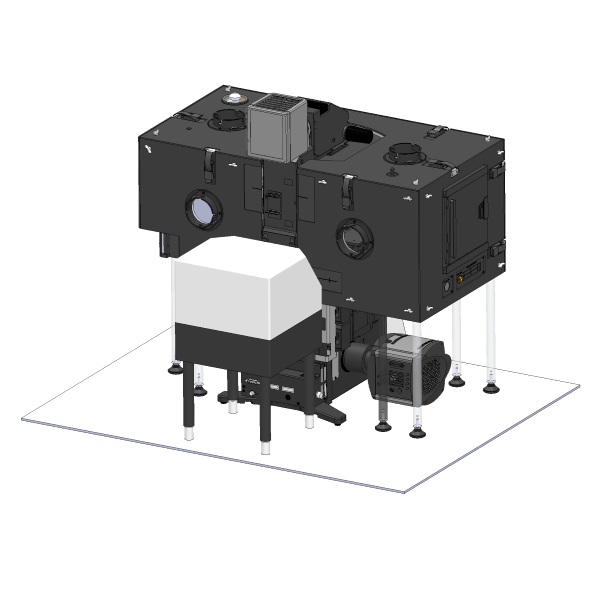

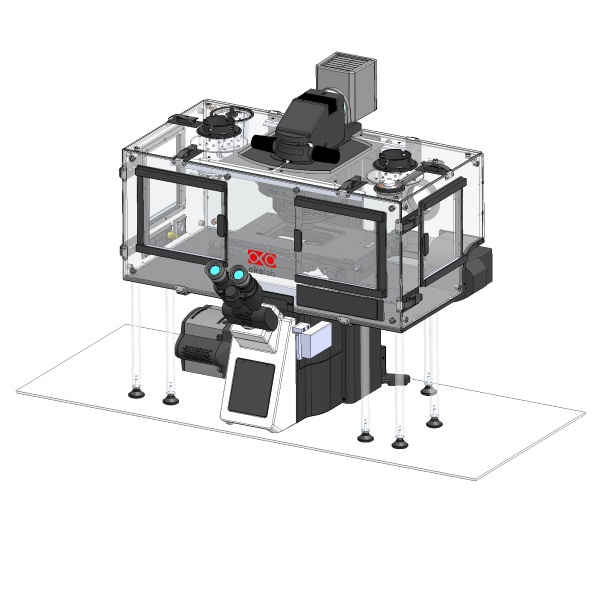

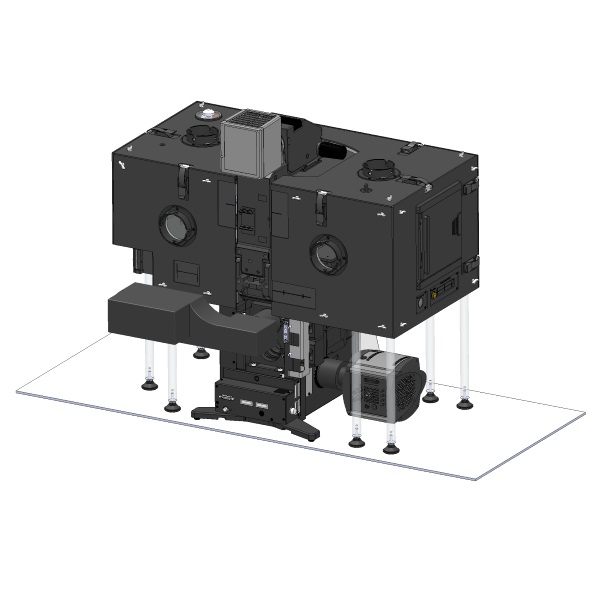

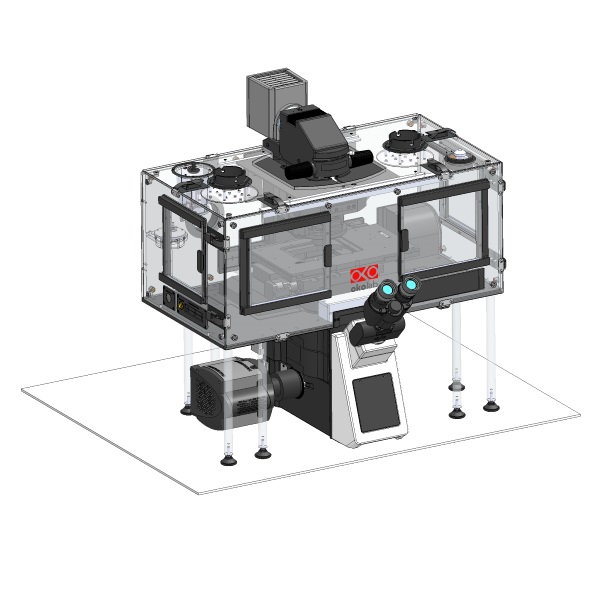

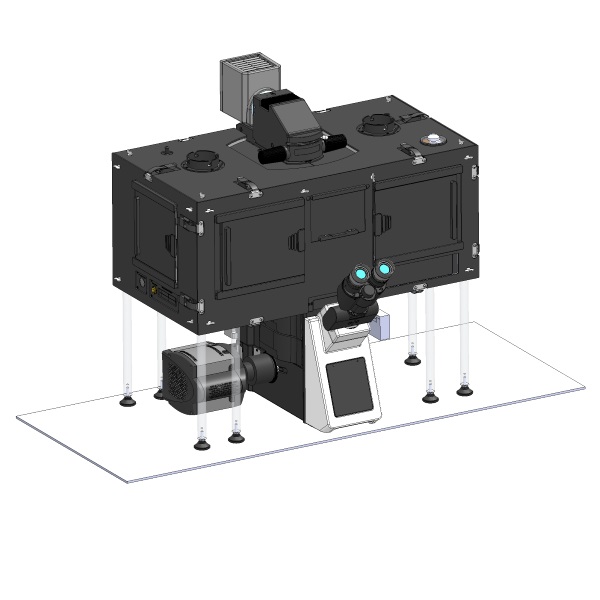

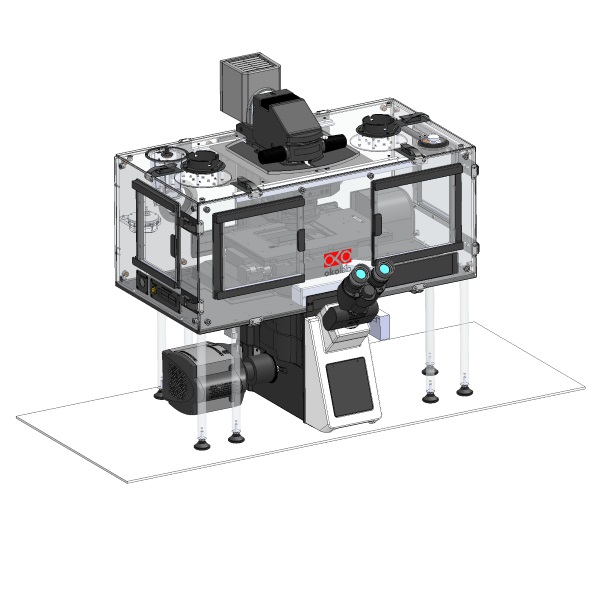

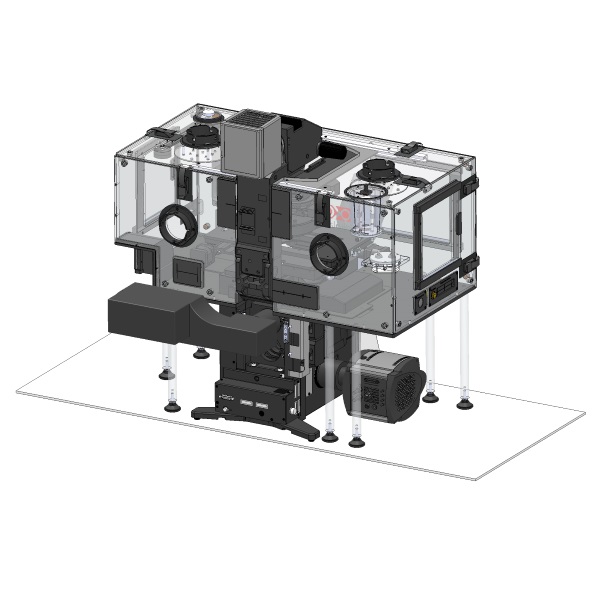

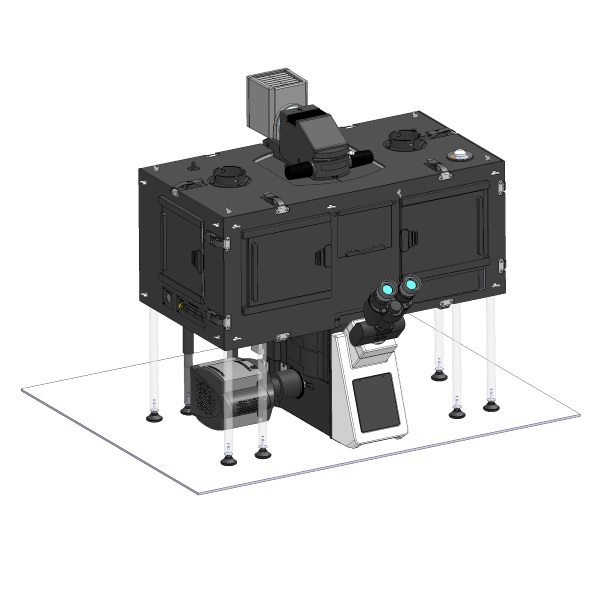

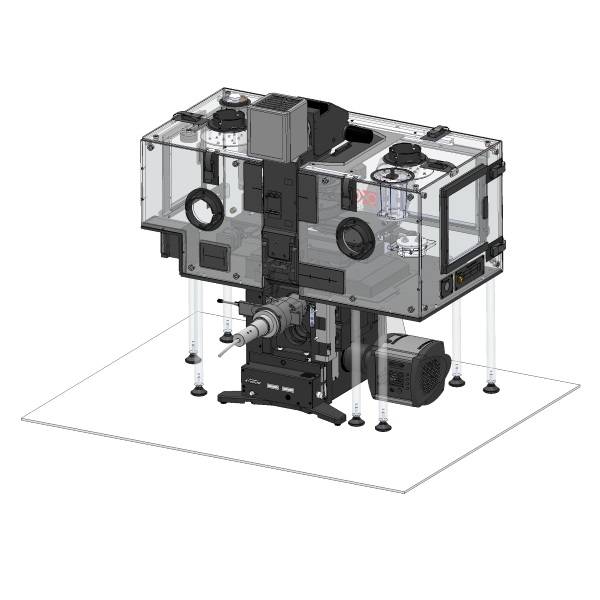

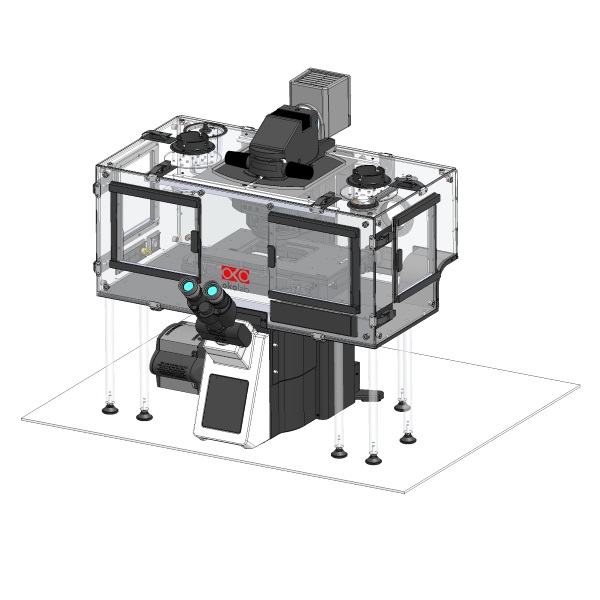

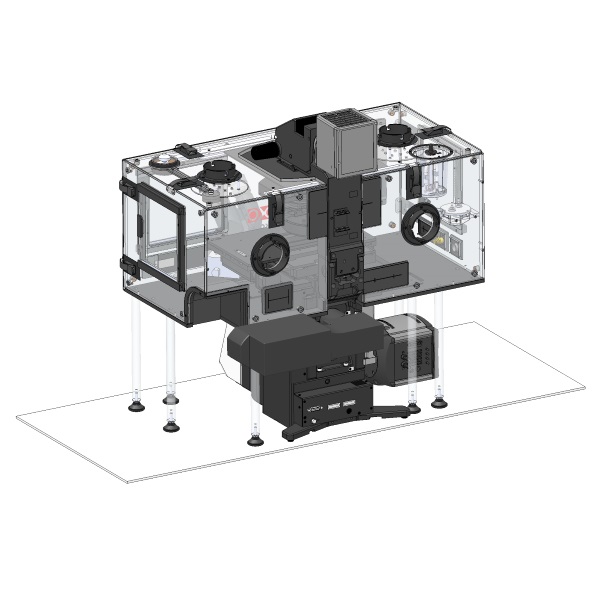

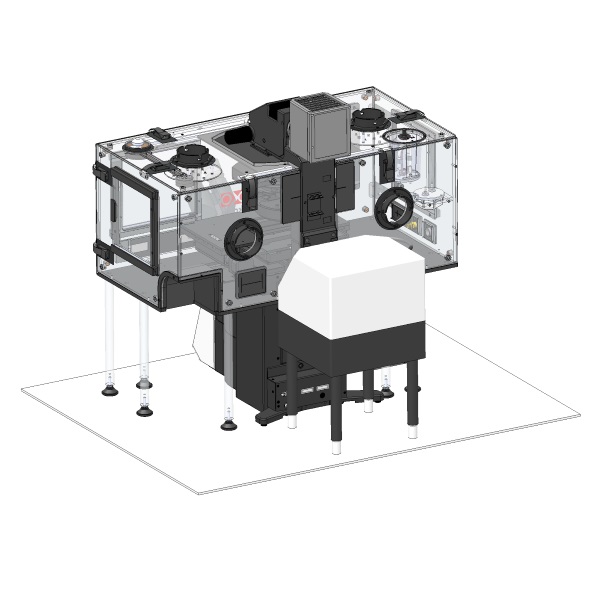

In this page we report drawings of the enclosure for three configurations, based on Olympus microscopes.




 Fluorescence ImagingFV1200 Laser scanningLive Cell Imaging
Body IX83: Two Decks IX83: Two Decks IX83: Two Decks
Eyepiece U-TBi90 U-TBi90 U-TBi90
XY-Stage Motorized Stage Motorized Stage Motorized Stage
Back Port IX3-RFA Fluorescence Illuminator + Microscope Adapter Laser Scanning Microscope Confocal FV1200 cellTIRF-1Line System
Left Port ANDOR-iXon Ultra 888 ANDOR-iXon Ultra 888 ANDOR-iXon Ultra 888
Right Port IX3-RFA Fluorescence Illuminator + Microscope Adapter Laser Scanning Microscope Confocal FV1200 cellTIRF-1Line System
Nosepiece IX3-ZDC IX3-ZDC IX3-ZDC
